Worklog My first GCp
- Thread starter Panchuflenks
- Start date
-
- Tags
- gamecube panchuflenks portable
- Joined
- Jan 16, 2016
- Messages
- 1,525
- Likes
- 4,075
- Location
- standing up
- Portables
- please do not ask!!!! I will NOT respond
HE'S NOT BANNED
WE LOVE PANCHUFLENKS
WE LOVE PANCHUFLENKS
- Joined
- Mar 26, 2016
- Messages
- 137
- Likes
- 192
as soon as i move house i'll start to finish the portable (first days of june)
- Joined
- Mar 26, 2016
- Messages
- 137
- Likes
- 192
Little update.
making some order in this portable.

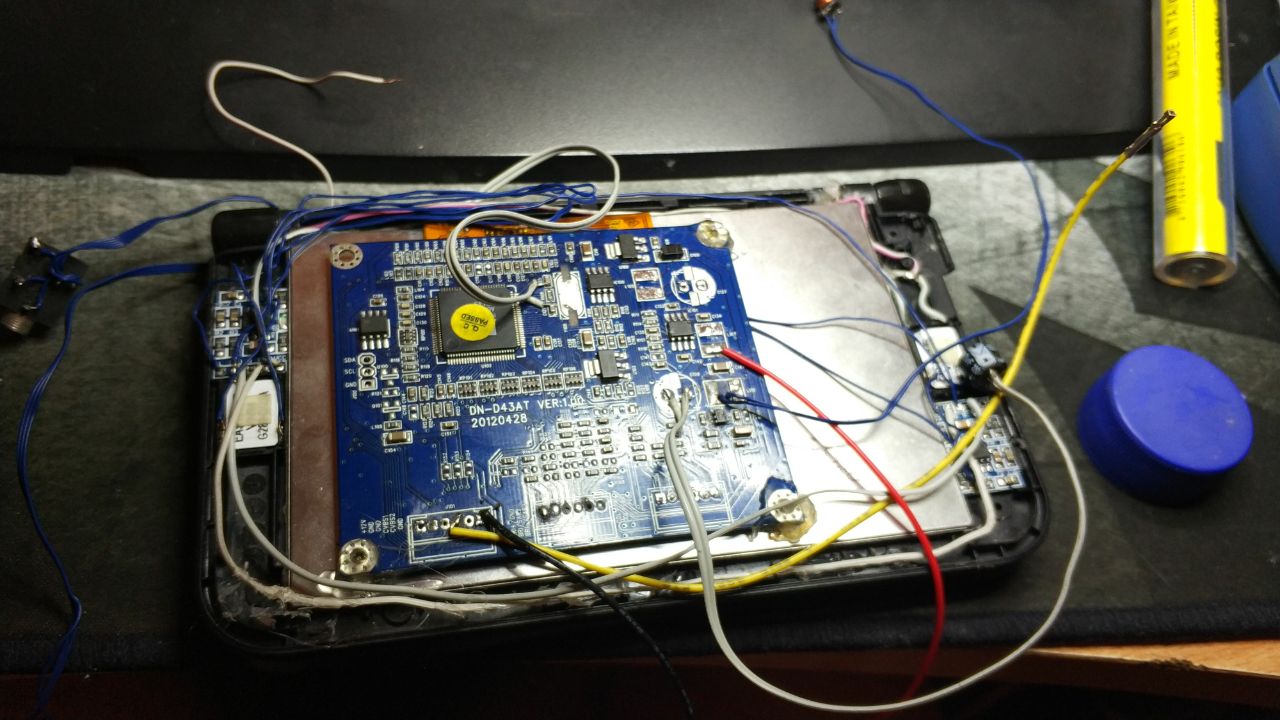

Before:

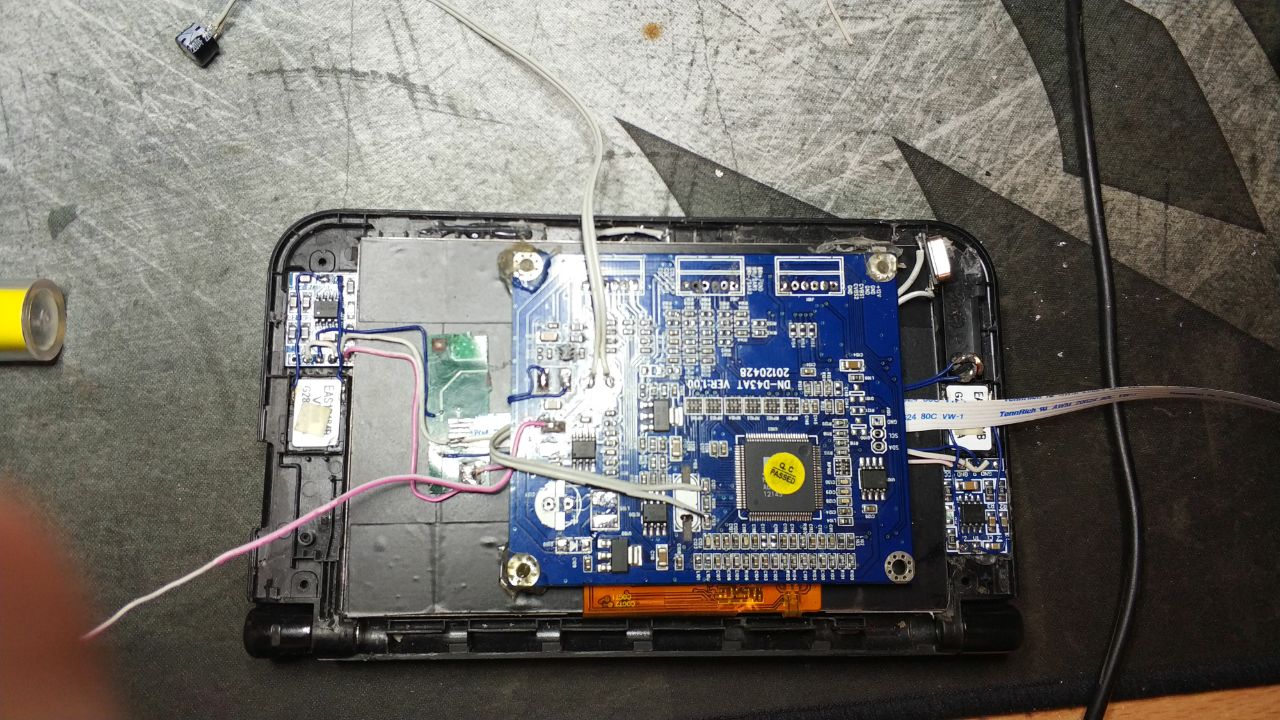

After:
this time, I'll take off the headphone jack
making some order in this portable.
Before:
After:
this time, I'll take off the headphone jack
- Joined
- Mar 26, 2016
- Messages
- 137
- Likes
- 192
That is the plan hehehe
- Joined
- Mar 26, 2016
- Messages
- 137
- Likes
- 192
Update N° A lol

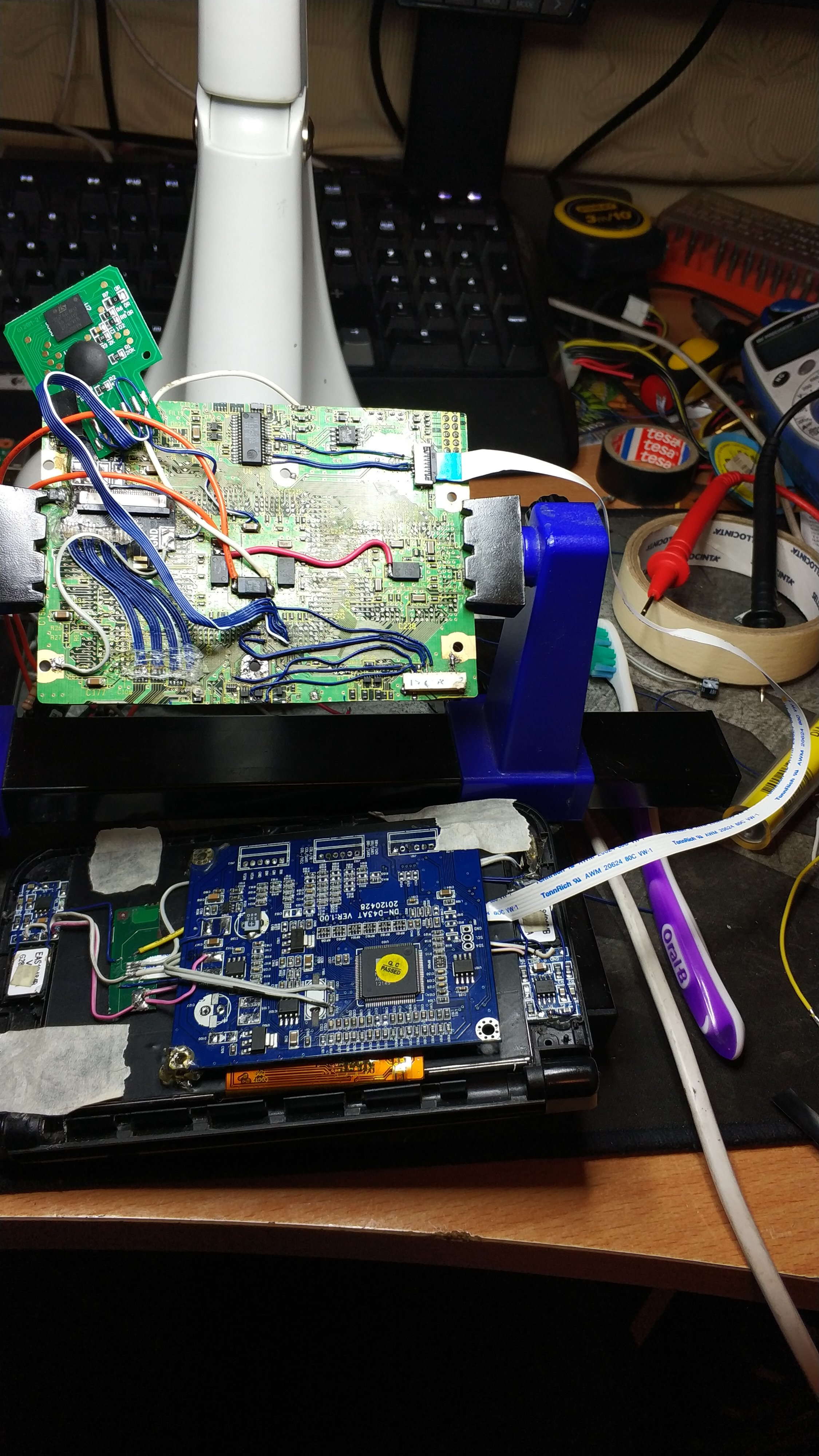

Modular audio/vídeo finished.
Only gnd left And 5v pins left
Modular audio/vídeo finished.
Only gnd left And 5v pins left
Ampz
.
Yay, you're back! Great job with cleaning up the internals and I can't wait to see this finished!
- Joined
- Mar 26, 2016
- Messages
- 137
- Likes
- 192
Guys need your advice
I'm thinking to do a modular power connection, that means 1.9v, 3v And 5v wires to a connector And next to power regulators. My question is i really need big cables to power up the Gc? Can i use ide cables to the power? It's necessary to have shielded wires? Can i use a step up converter instead of 7.4v battery pack. Will decrease a Lot of play time?.
Thank YouTube guys for your support and Nice words (:
I'm thinking to do a modular power connection, that means 1.9v, 3v And 5v wires to a connector And next to power regulators. My question is i really need big cables to power up the Gc? Can i use ide cables to the power? It's necessary to have shielded wires? Can i use a step up converter instead of 7.4v battery pack. Will decrease a Lot of play time?.
Thank YouTube guys for your support and Nice words (:
What do you need a step up for? What's your source? A 3.7V battery?
Anyway IDE could be fine if you have AWG 22 wires, but it's close to the limit. Shielded wires are not needed for power, unless the power supply is noisy and the wires run next to sensible stuff (like the audio amplifier or the video signal)
- Joined
- Mar 26, 2016
- Messages
- 137
- Likes
- 192
I have a 7.4 battery pack, but i was planning use one battery cell for space
Oh well you could use a step up (the efficiency wouldn't be affected that much), but you have to make sure that your battery can provide enough current
- Joined
- Mar 26, 2016
- Messages
- 137
- Likes
- 192
Mmmm...And what's the max current that it can draw?
I don't remember very well the GC power draw, maybe something like 12W for only the console? So assuming a 3.7V cell you would get 3.2A
- Joined
- Mar 26, 2016
- Messages
- 137
- Likes
- 192
understood, better with 2 cells.
another wquesttion. im looking using this flexible cable for power. will it work?
http://www.ebay.com/itm/SUMITOMO-C-...LONG-1-4-WIDE-FLEX-CABLE-/302153577531?_ul=CL
http://www.ebay.com/itm/SUMITOMO-C-...LONG-1-4-WIDE-FLEX-CABLE-/302153577531?_ul=CL
FFC cable shouldn't be used for power, they're usually rated for low currents. You could use multiple lines, but you should check the maximum ratings.
- Joined
- Mar 26, 2016
- Messages
- 137
- Likes
- 192
i have no idea of max rating, but i was thinking about to use 2 lines for each voltage and 1 for ground.
th e cable says awm 20624 80c 60v vw-1 -f- 60v is the max voltage that it can handle without break?
