Worklog Some PS2 Project

[Miggas]

I found another component that although it's in stock, the BOM has a name for that component that I can't find anywhere outside of china, it's the 16.9344MHz oscillator, NX3225GA-16.9344M-STD-CRG-2, it's not in digikey, mouser, TME, etc..., it's actually under the name STDCRG2-16.9344M, it's the exact same component and it took about an hour to find it.



[Tschicki]

I found another component that although it's in stock, the BOM has a name for that component that I can't find anywhere outside of china, it's the 16.9344MHz oscillator, NX3225GA-16.9344M-STD-CRG-2, it's not in digikey, mouser, TME, etc..., it's actually under the name STDCRG2-16.9344M, it's the exact same component and it took about an hour to find it.

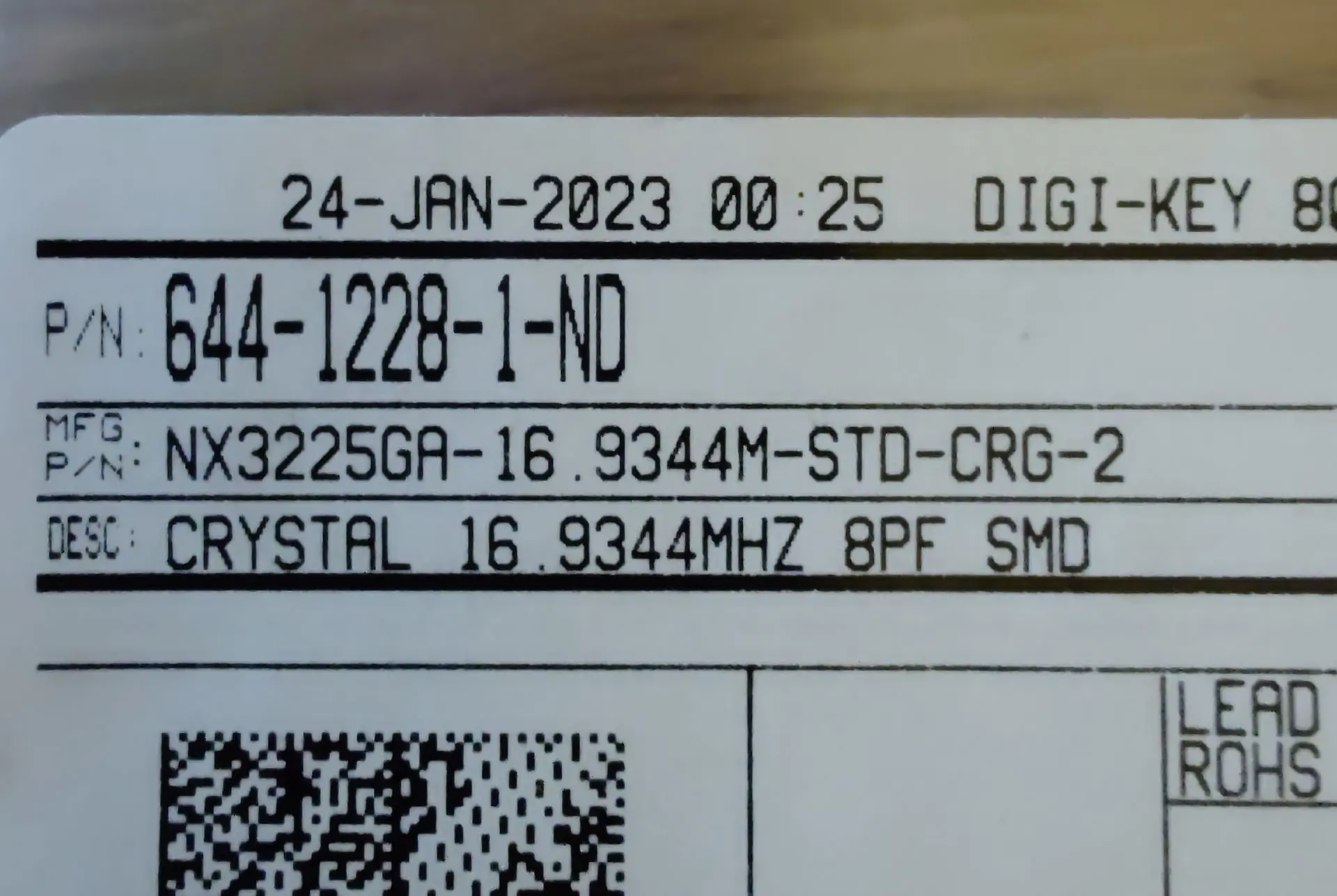

The part number of that crystal may have changed at some point (?), because all stock I ordered back then is marked with NX3225GA-16.9344M-STD-CRG-2. Searching for it in Digikey or Mouser now redirects to the STDCRG2-16.9344M, which is the correct part and fine to use. I will try to update that in the BOM today or tomorrow!
