Worklog PS2p: 3 years Hiatus... Comeback!

[Deleted member 1052]

so does this mean that you're suggesting me not to buy this screen?

I wouldn't go with that one personally. If you don't mind the wait you can get some pretty good ones to use from Ali Express for cheaper. That's where i get mine (25-30 dollars for screen and driver)

Only issue I've had with them is they don't support the 15hz signal for VGA of you want the best picture, but i don't think many screens do.



[cheese]

Power Supply (Typ) 12V

Also, just for future reference, when it says "(typ)", that's short for typical.



[cfc_12]

just wanna ask, what are the video capabilities for the ps1 screen?

is it only composite?



[GingerOfOz]

Please do some research. That's a question the Internet can answer in around 5 seconds.

Composite is all you can use, which is partially why people reccomended using other screens.



[Lightning]

Please do some research. That's a question the Internet can answer in around 5 seconds.

Composite is all you can use, which is partially why people reccomended using other screens.

No, composite is not all you can use, the screen accepts RGB/VGA as well



[GingerOfOz]

The source I read said that you needed to mod the screen in order to do it, but maybe it was wrong.



[Aurelio]

No, composite is not all you can use, the screen accepts RGB/VGA as well

Only 15kHz though, iirc



[Lightning]

You are correct, the signal is only 15khz, but its still technically VGA



[Stitches]

Anything's better than composite >.> (except RF)



[Deleted member 1052]

Only 15kHz though, iirc

Isn't 15 all the H/V lines spit out anyway?



[Aurelio]

Isn't 15 all the H/V lines spit out anyway?

On a 640x480 image 15kHz means interlaced video



[Deleted member 1052]

On a 640x480 image 15kHz means interlaced video

Ah, okay. Still learning about signals (my phone originally autocorrected that to dongals! XD)



[cfc_12]

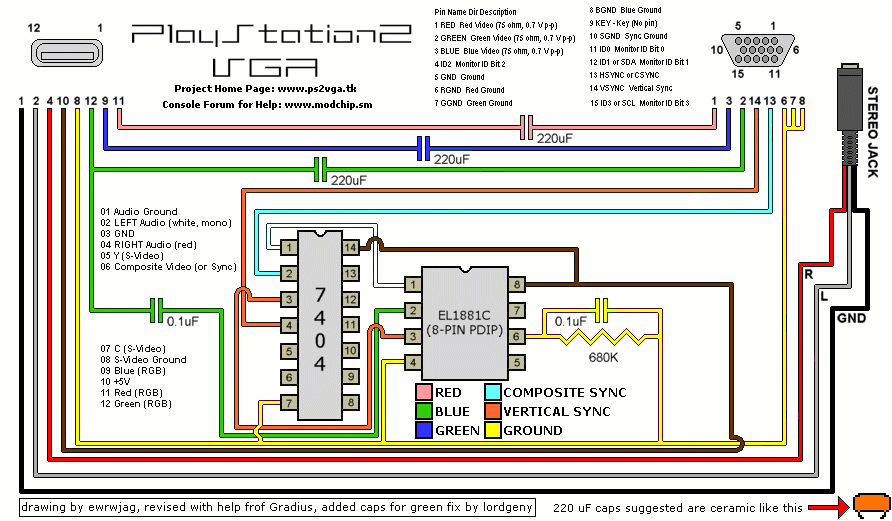

Looks like I found how to have a VGA output for PS2

Do you think this will work?



[Deleted member 1052]

Its cheaper for you to buy a wii/ps3 to VGA adapter and chop out the board inside it. Both solutions will produce a 15khz signal I think which still isn't very helpful. https://www.ebay.co.uk/i/252797714608

Edit:

That circuit; based on the data sheets for those icu numbers, looks like nothing more than a sync splitter (the sync is on green on a PS2.) The cost to design (time) and fabricate (money) such a board would cost you more than the £25/$40 that adapter does which does exactly the same.



[Lightning]

Perhaps I'm missing something here, but what is the point of using a converter board when the ps2 outputs in VGA on it's own?



[Deleted member 1052]

Perhaps I'm missing something here, but what is the point of using a converter board when the ps2 outputs in VGA on it's own?

That's what I'm saying, really. Ps2 outputs 15khz VGA already via 2 *incredibly* small H/V vias and RGB. Can be easier for some people to just use a converter board which has some nice big pads to solder to and split sync off the green channel.

In this case, the questions the OP has asked in this thread and their DMs- I'd probably recommend the board and not the vias to prevent damaging their PS2



[Lightning]

Yea it does require some quantum scale soldering skills lol, even just grabbing the chip legs on the stock encoder chip is pretty hard



[Deleted member 1052]

Any benefit to going directly to the legs? Aren't the vias on the cathode side of a resistor path? (no board to look at since I Just moved house and had another baby so my portable is on hold.



[Lightning]

No not really, the 70011 had test pads, but with the 79001 its really just a choice between vias or chip legs, and personally I'm doing vias



[Deleted member 1052]

No not really, the 70011 had test pads, but with the 79001 its really just a choice between vias or chip legs, and personally I'm doing vias

To benefit @cfc_12, a via is a (probably for debugging/test harnessing purposes) place that a signal gets through before it gets to its final destination.
