Worklog The last one, 3rd ps2 portable

[Fly_5]

it works well ? could you send me the link to buy it ? I like it because it is small



[Customledmods]

It works good, don’t have link just search tiny 5v audio amp should come up



[Fly_5]

ok !! thanks



[Customledmods]

ok !! thanks

Name on back



[YveltalGriffin]

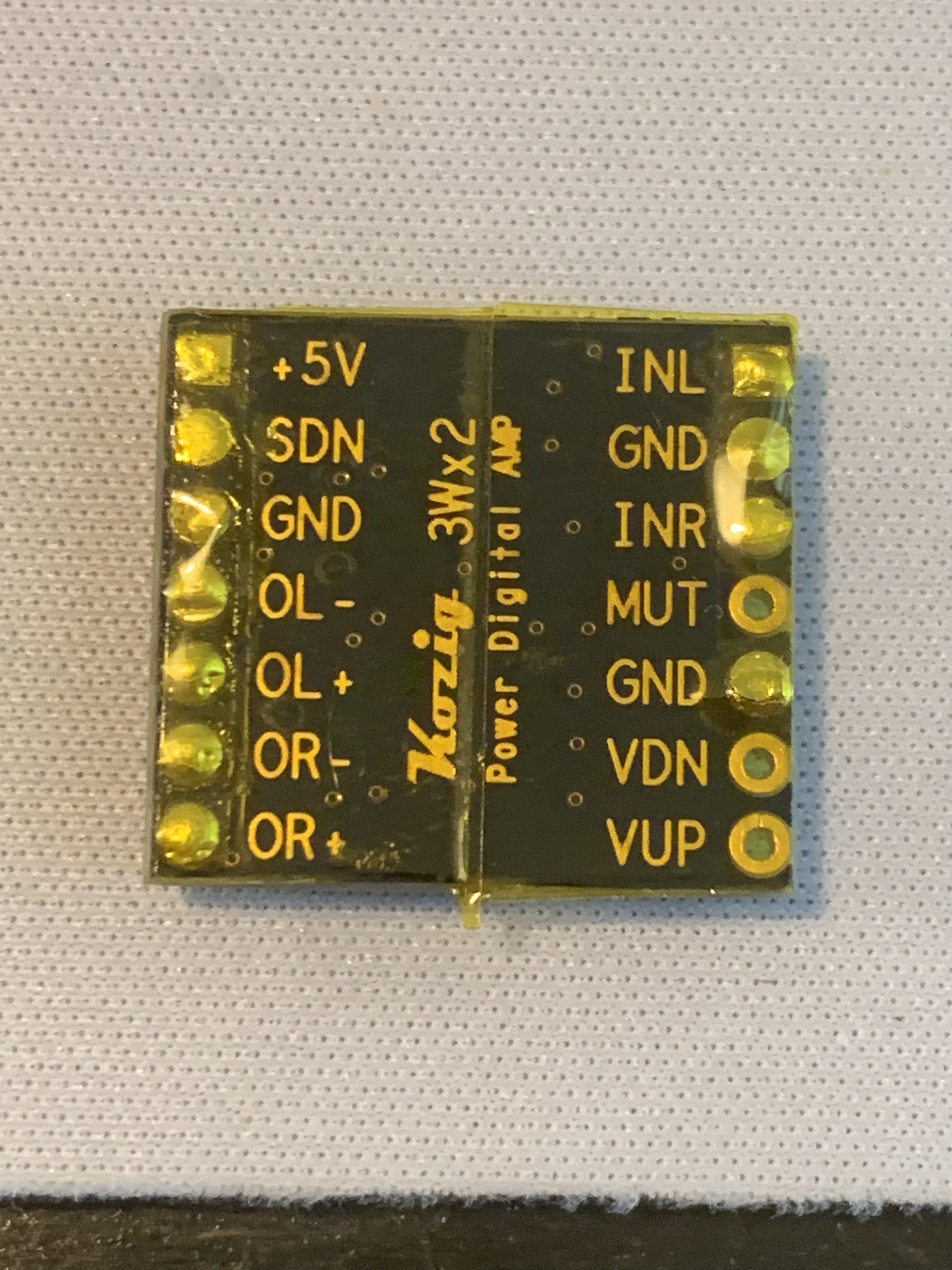

Just for future reference, that's a PAM8803 amplifier. "PAM8803" or "4Ω 3w amp" are the best search keywords and it's available on eBay and Amazon.



[Fly_5]

Just for future reference, that's a PAM8803 amplifier. "PAM8803" or "4Ω 3w amp" are the best search keywords and it's available on eBay and Amazon.

Thank you very much I found it with those words on Ebay , thanks a lot.



[Customledmods]

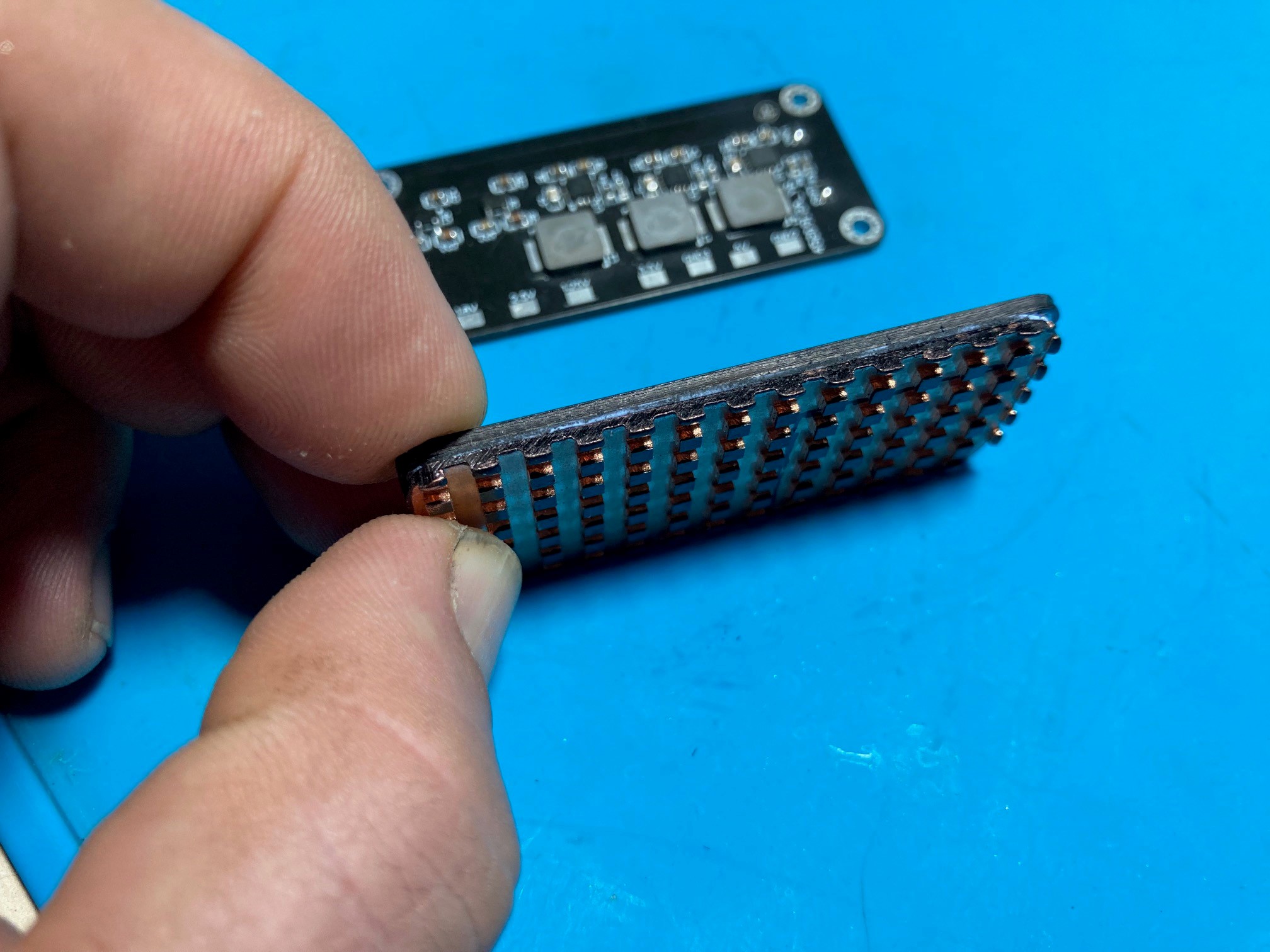

Im going to order a copper sheet to add on top of my fan/heatsink and solder the reg board to copper sheet. I’m also going to redo my cooling system just like @thedrew did on his portable hopefully it works.

Worklog - Wii-C

After finishing the PS2P, the case felt pretty comfortable compared to all the other small portables I have built. I decided to use the same case and modify the internals for a Wii instead. I am calling this the Wii-C (C standing for Comfort). The goal of this portable was to not go all crazy...

www.bitbuilt.net



[Customledmods]

Small Update:

My printer gave out on me so i can’t reprint a new shell with the edits I made but the ps2 still works with small modifications I made to shell.

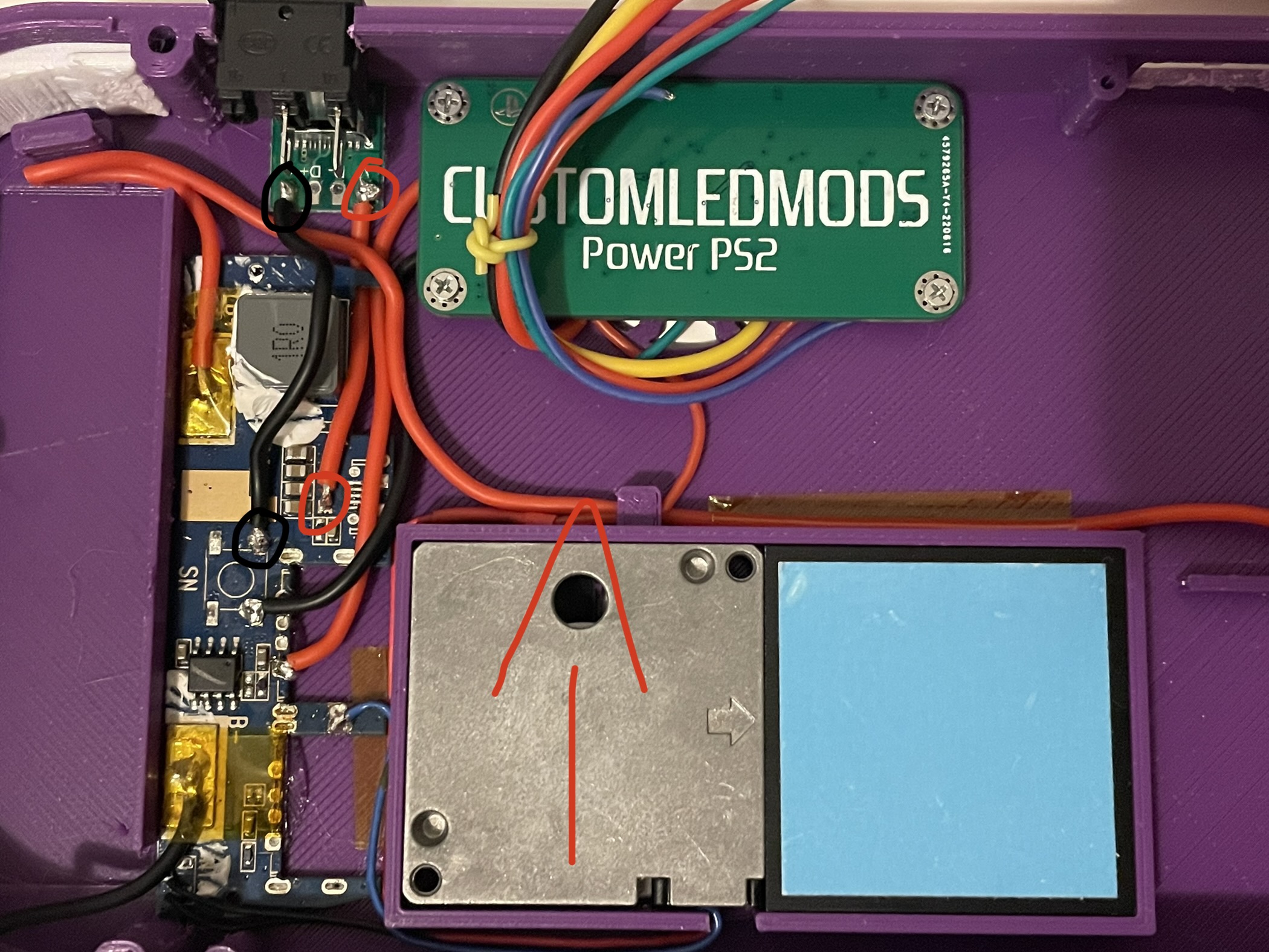

First issue ps2 was shutting off after an hour of use that’s with no copper sheet, and now just by redirecting the fan towards the reg board it stayed on for 2 hours, hopefully once I add the copper sheet and new thermal paste it will stay cooler.

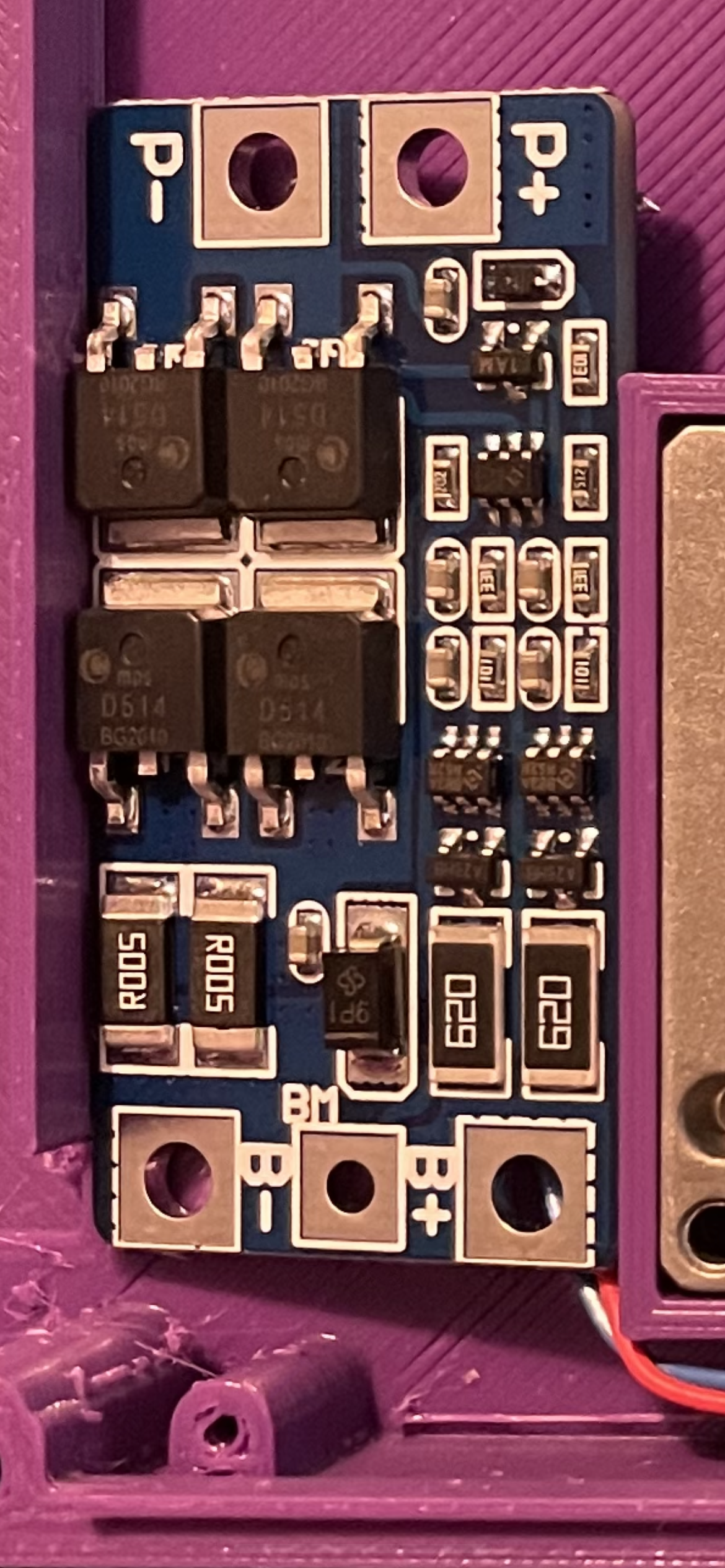

Another thing I’m fixing is my power bank charge board this thing drains my batteries super quick so I’m replacing with a 2s bms with everything connected it draws 1.7amp.



[Customledmods]

First off I have learned a valuable lesson and that is to never release anything until it’s 100% tested and working. Even though I had no issues when using gmans pms next time I would wait on releasing any new stls.

Finally I was able to finish it even after my printer broke, I made the last tweaks using my Dremel it doesn’t look pretty but at least it doesn’t turn off.

I don’t understand how I finished it and I forgot to take pictures. So if anyone has any questions about wiring let me know I’ll gladly help you.



[Fly_5]

Good job it looks good, was it shut down due to overheating of the PMS module?



[Customledmods]

Good job it looks good, was it shut down due to overheating of the PMS module?

Thanks and yes to much heat inside the housing so it would freeze/shutdown after 1 hour. And now after copper sheet new thermal paste I ran it for almost 3 hours it gets warm but no issues so far.



[Fly_5]

I finally got the necessary components to mount the PMS and by the way I followed your advice and put a copper plate and modify the ventilation of the housing.



[Customledmods]

I finally got the necessary components to mount the PMS and by the way I followed your advice and put a copper plate and modify the ventilation of the housing.

That’s awesome, if I see any issues I will post them here but so far everything is working great.



[fikar]

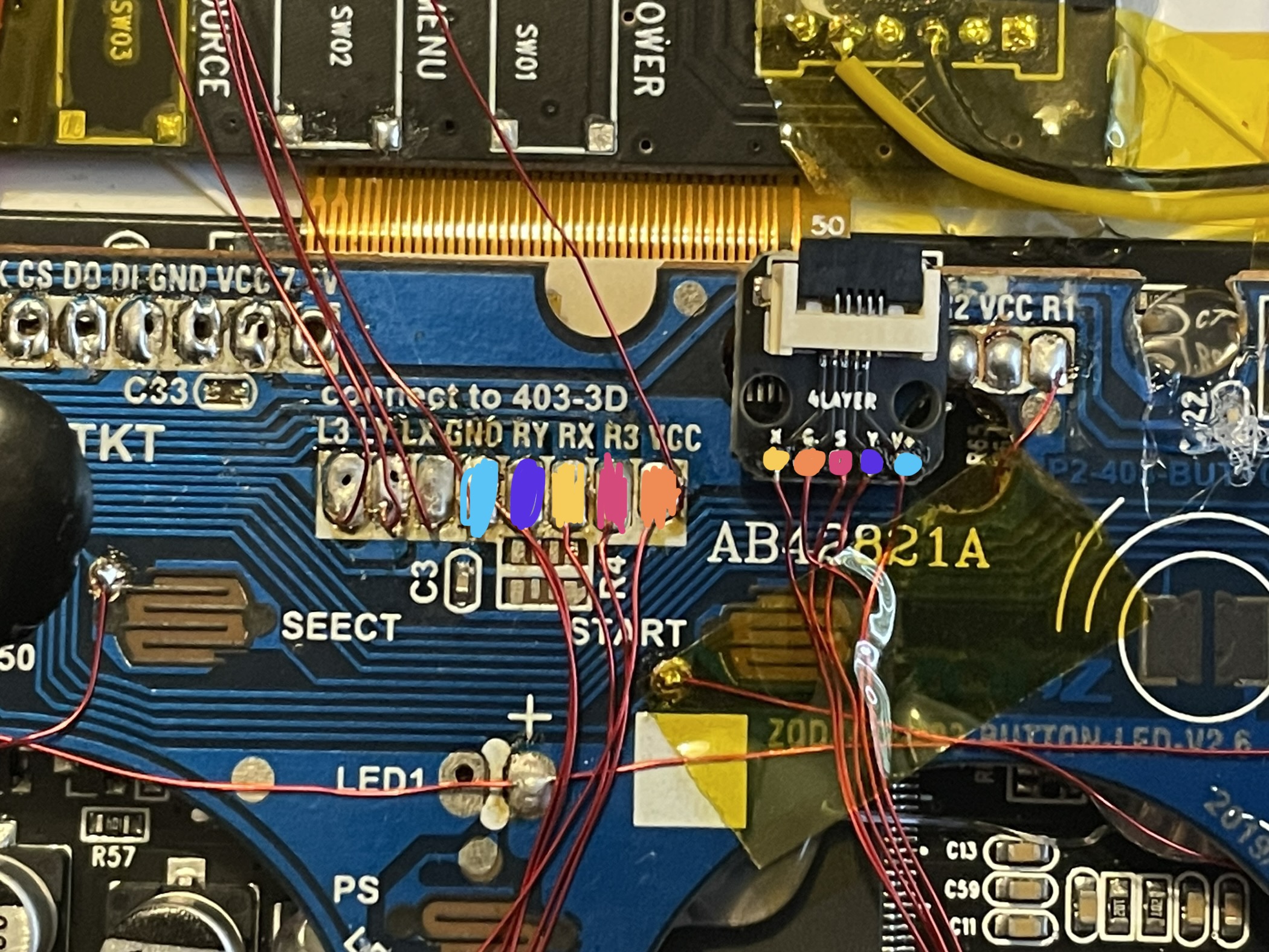

excuse me i have a question about this, why is the GND pin connected to the VCC pin?



[Customledmods]

When I had them connected the other way the analogs did not work correctly so thanks to @Mister M advice I swapped the gnd and vcc now they work perfect in the orientation I have them in.



[fikar]

ok thanks for the answer



[supra92270]

Bonjour, aimeriez-vous voir les figurines 3D de la bouteille pour que je puisse créer le mème ?



[Customledmods]

https://bitbuilt.net/forums/index.php?threads/updated-ps2-21700-use-these.6725/
