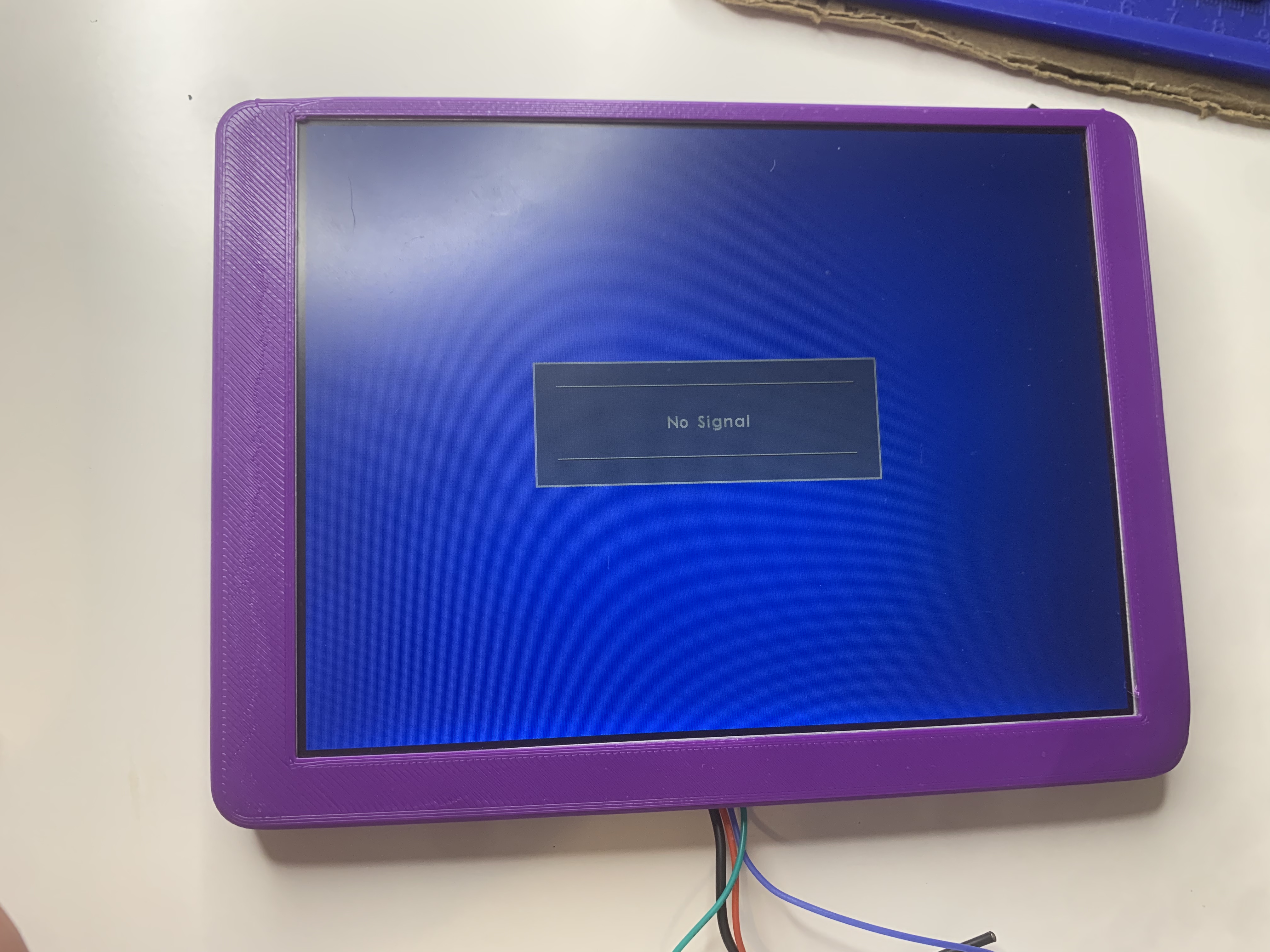

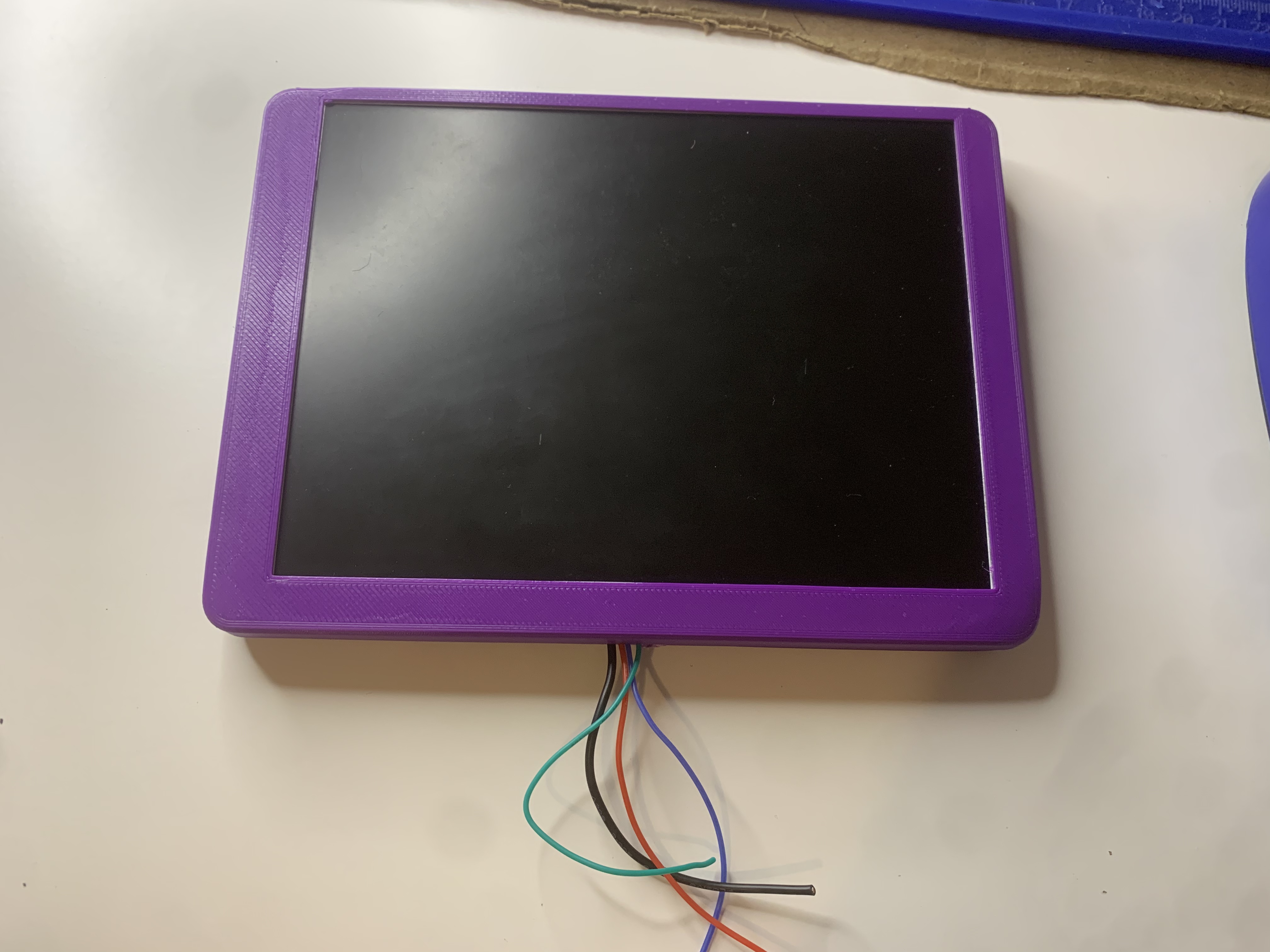

Finished a simple portable 7” lcd for testing trimmed motherboards. I like this lcd because I only need rgb for testing.

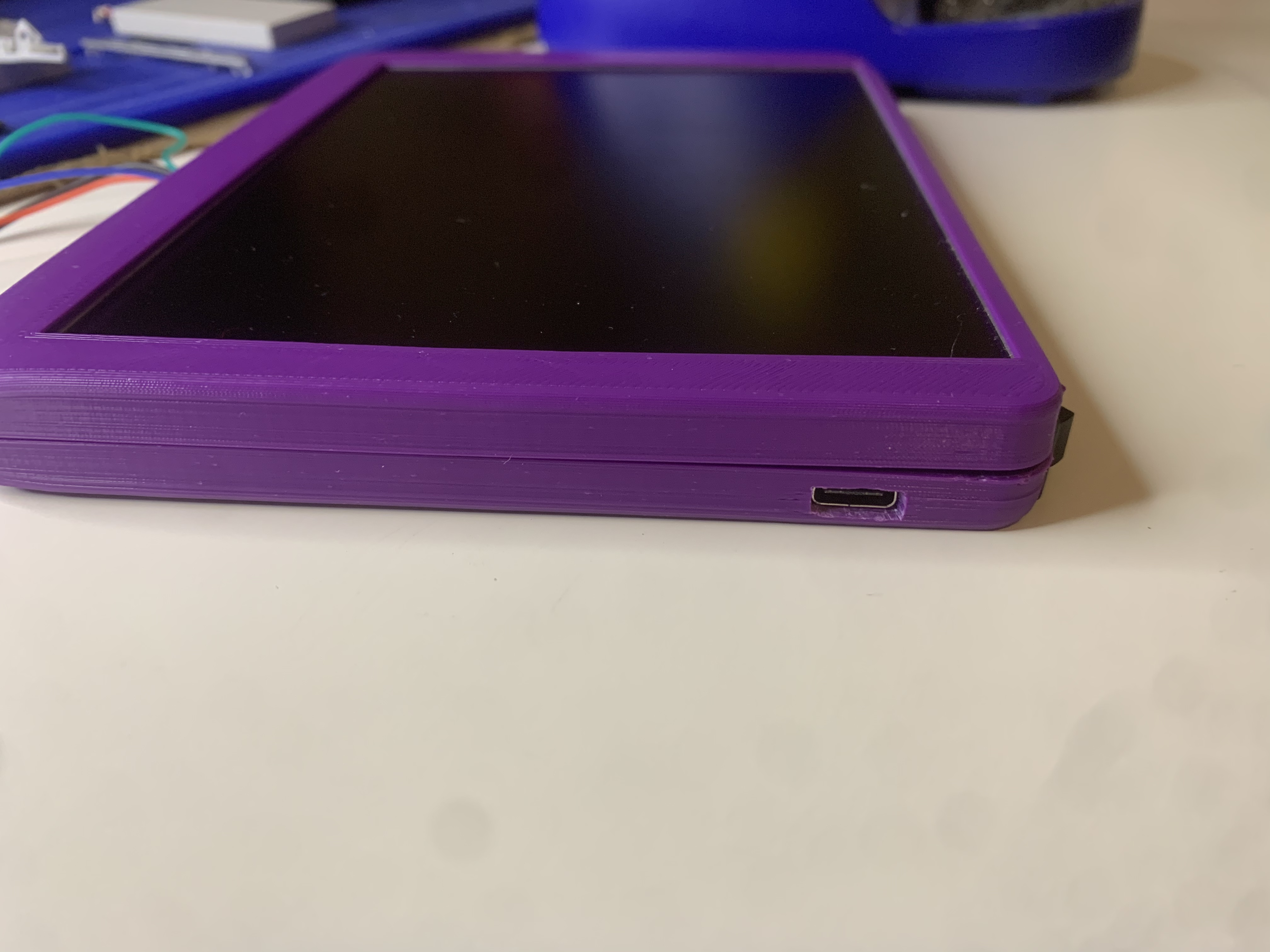

Usb c charging

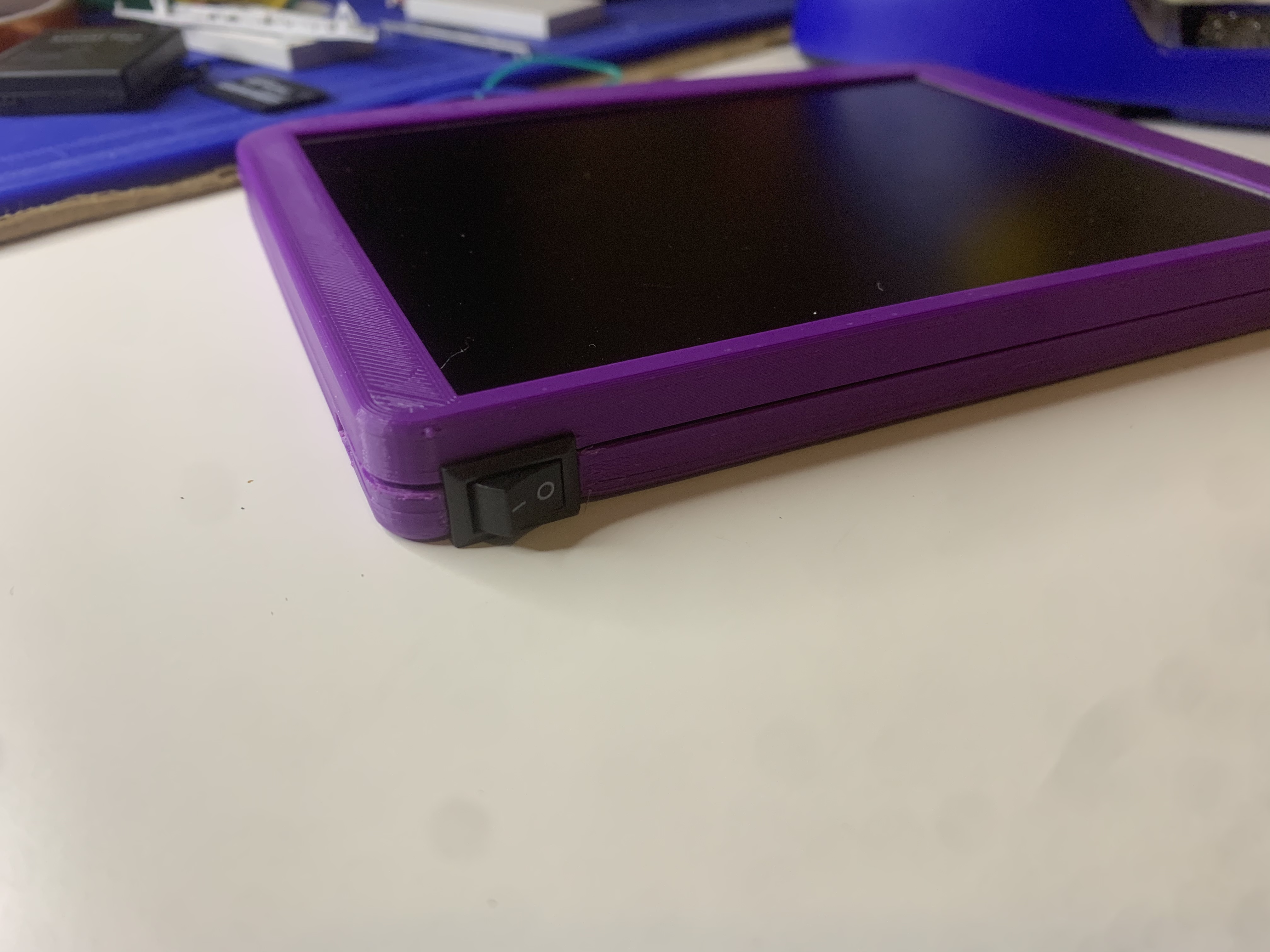

On/off switch

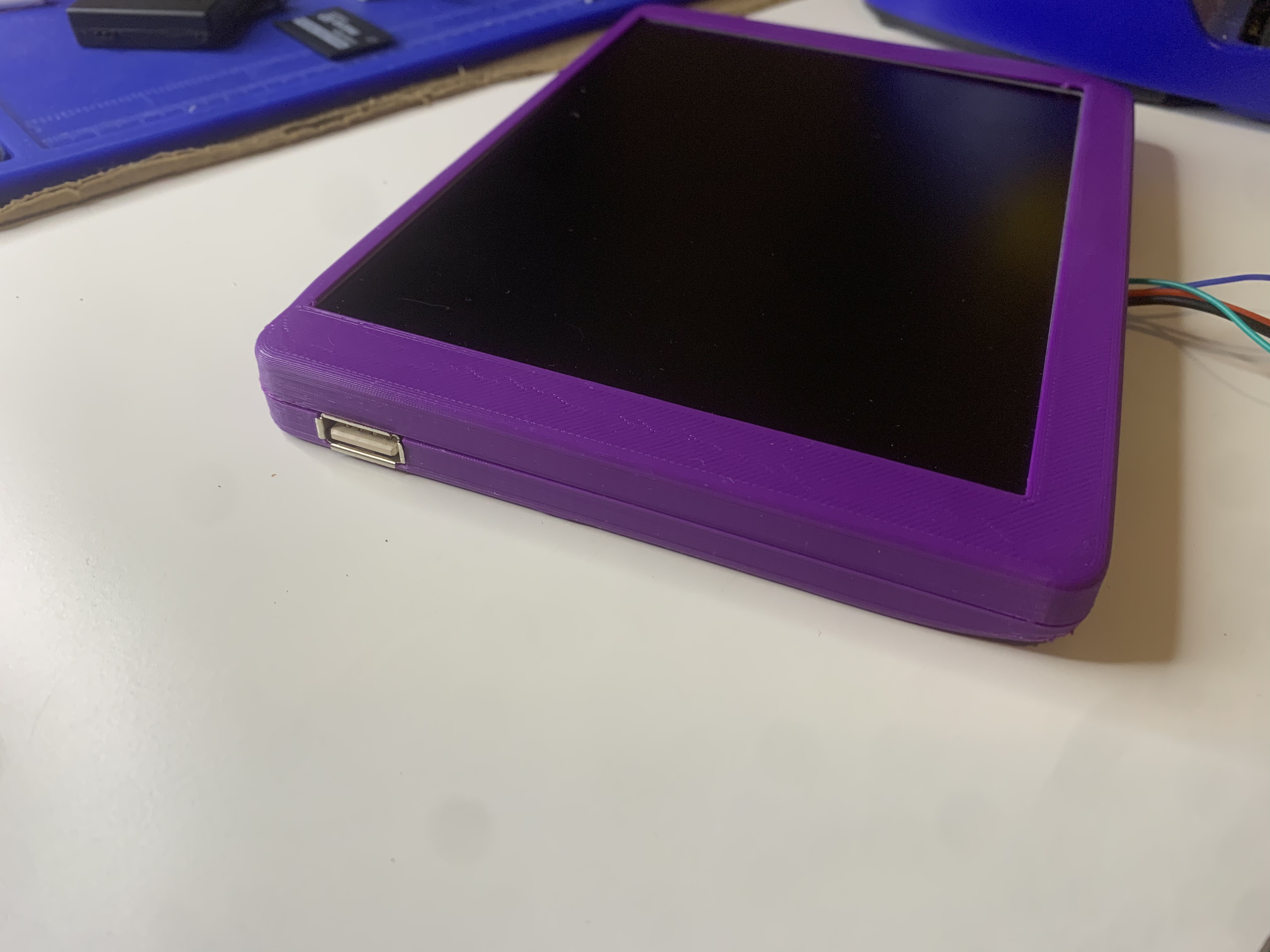

Usb 2.0 with 5v out



[vipe_202]

Love the setup, RGB as in component output? Would you be able to post that lcd info? I only know of the 5" eyoyo that has RGB

Just realized this could have been an HDMI compatible LCD with a simple RGB converter input, still great idea



[Customledmods]

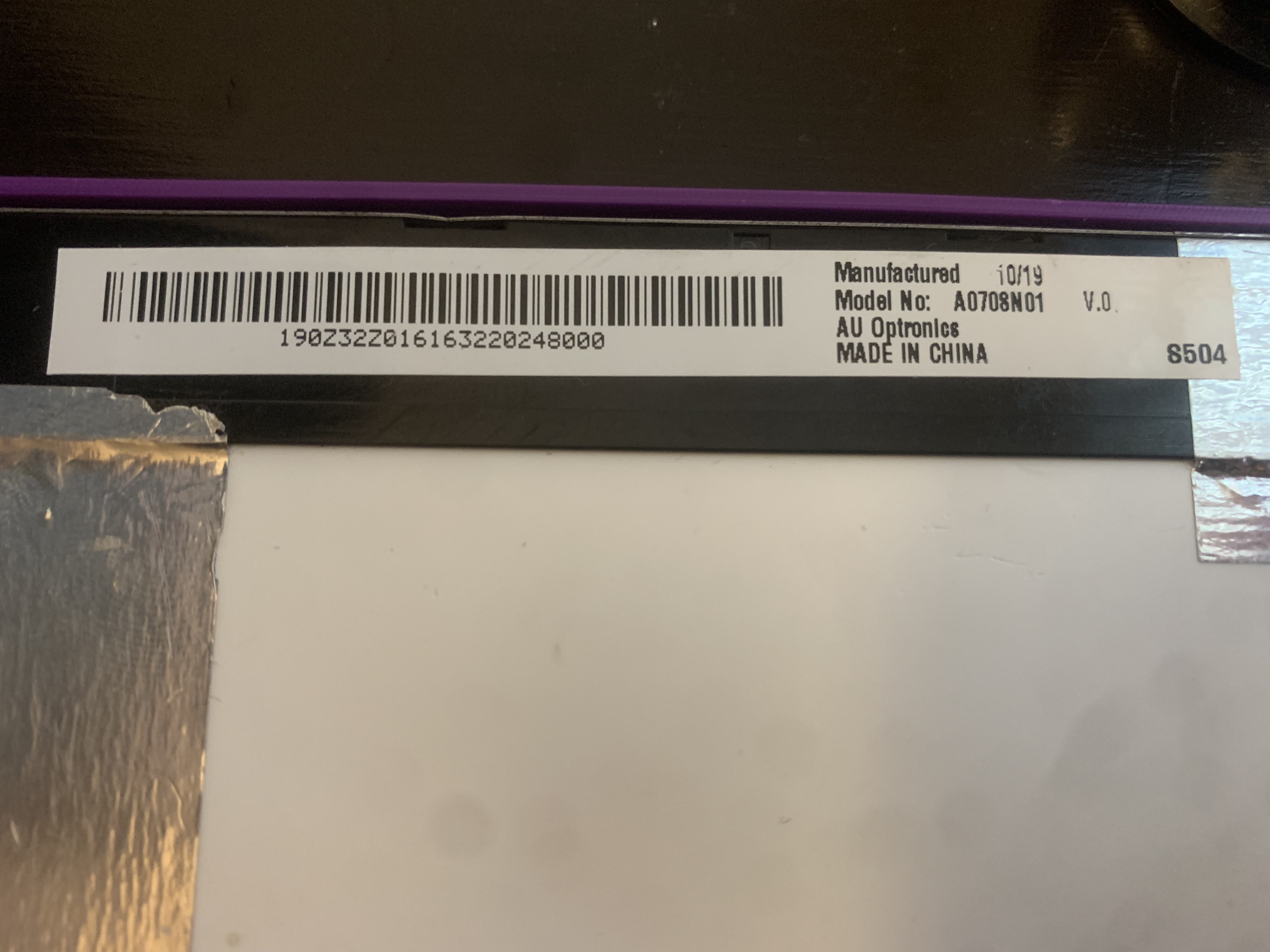

Love the setup, RGB as in component output? Would you be able to post that lcd info? I only know of the 5" eyoyo that has RGB



[Benge]

Very convenient thing



[Razethan]

This is actually pretty cool, really well executed



[Customledmods]

This is actually pretty cool, really well executed

Thanks



[Customledmods]



[vipe_202]

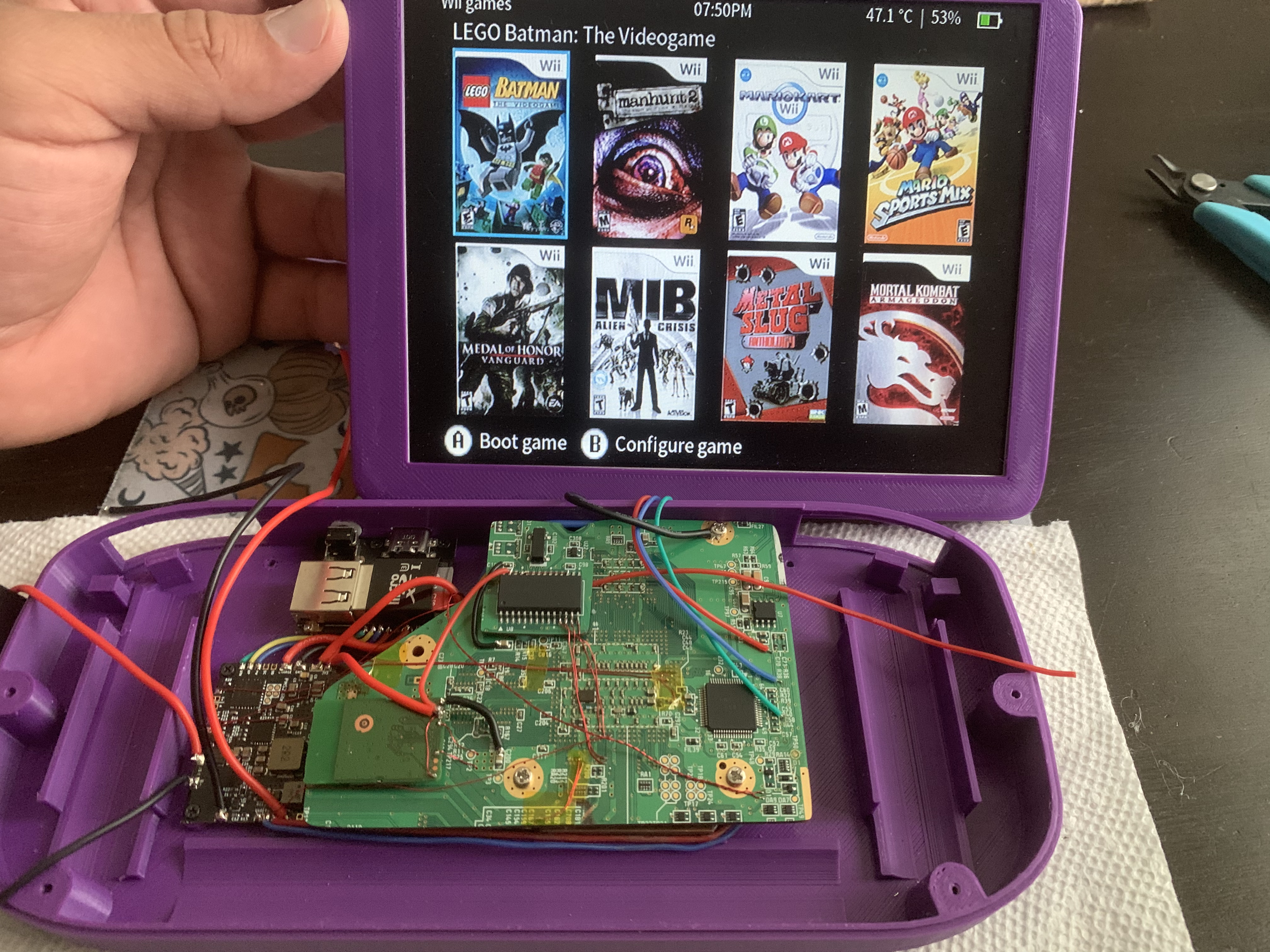

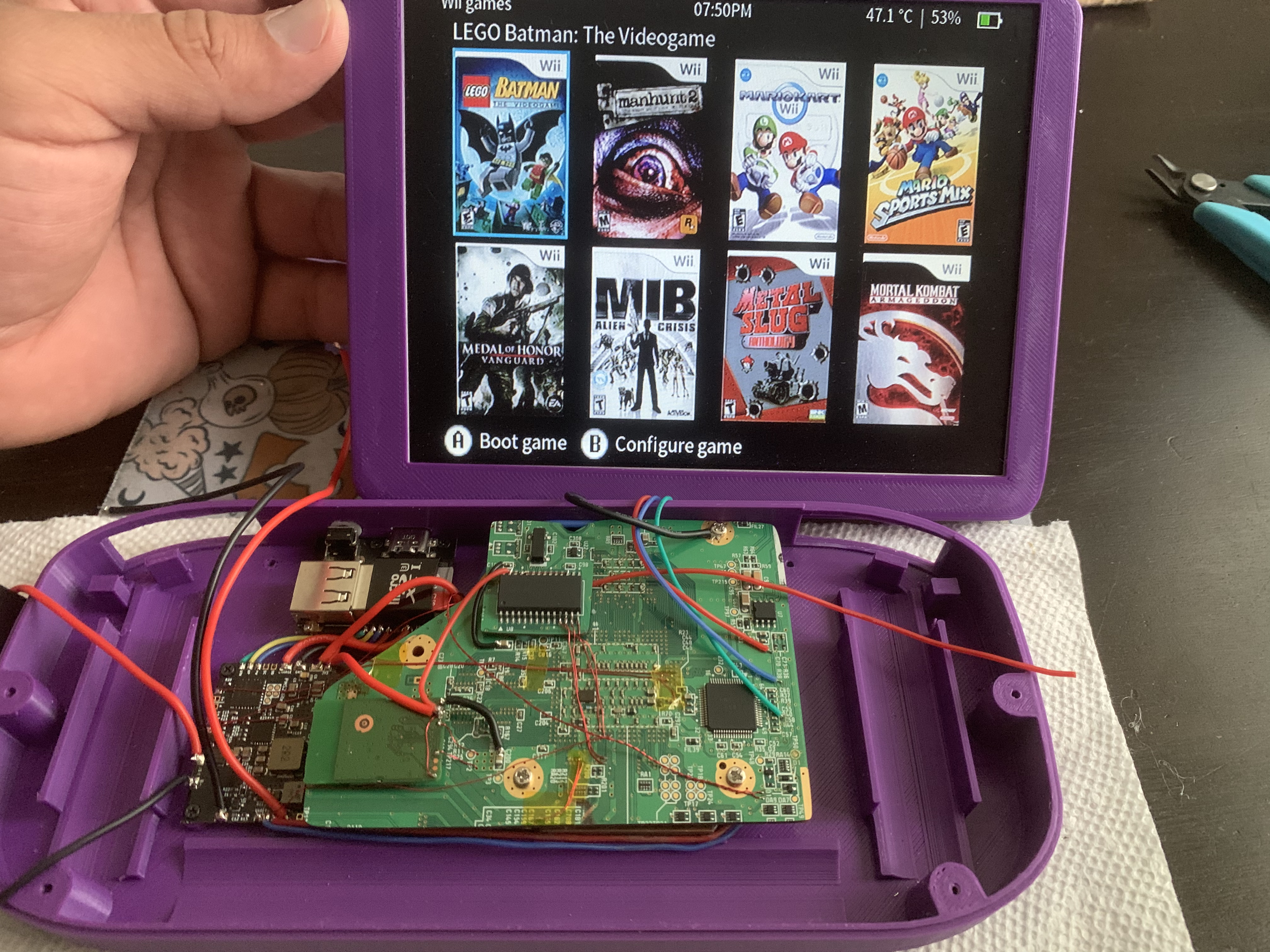

That's awesome, when I saw the RGB lines going to the VGA header I had been skeptical as I was under the impression that RGB component wouldn't work through there but this is sick man. Definitely have to test this on my lcds



[Razethan]

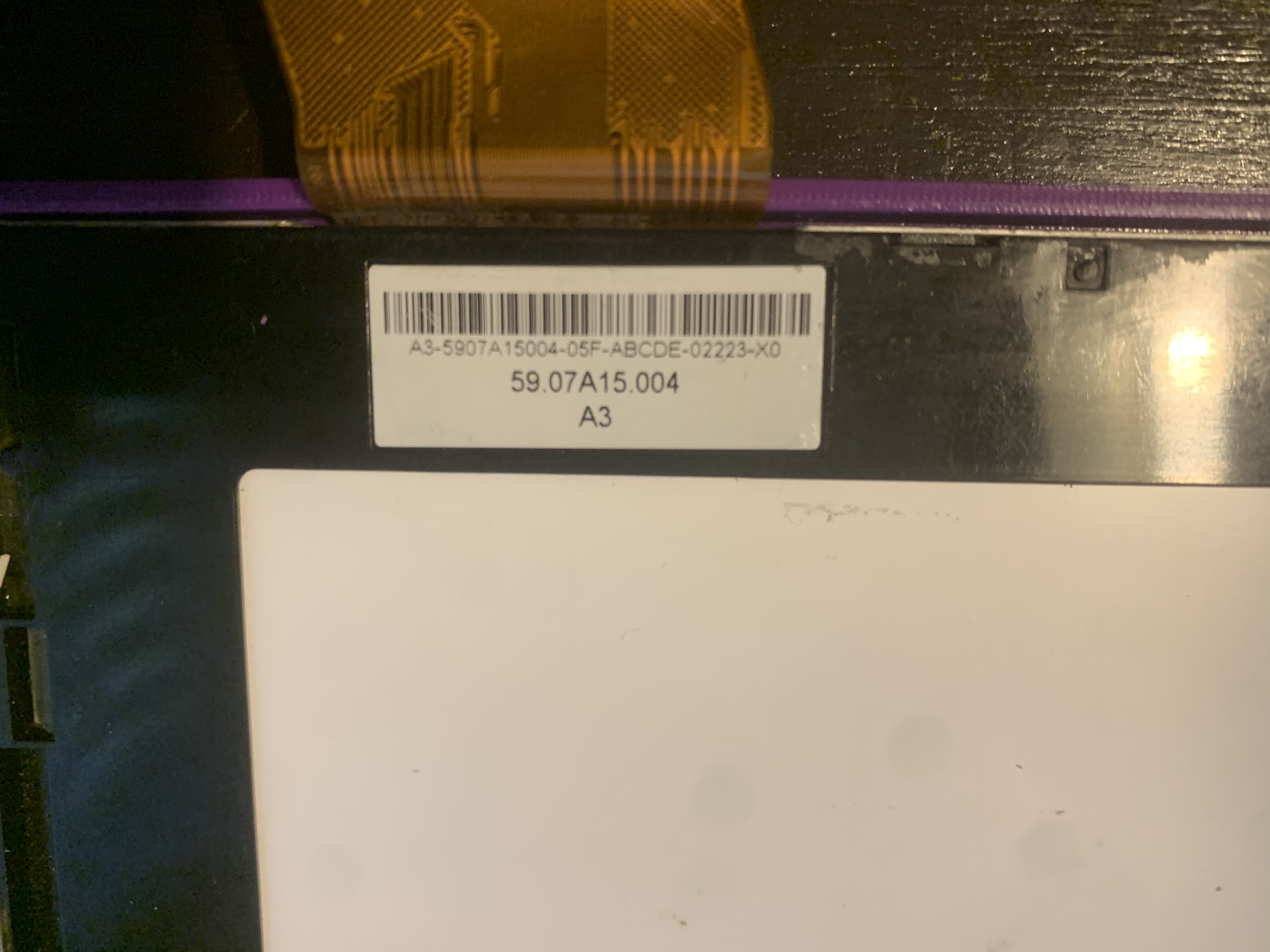

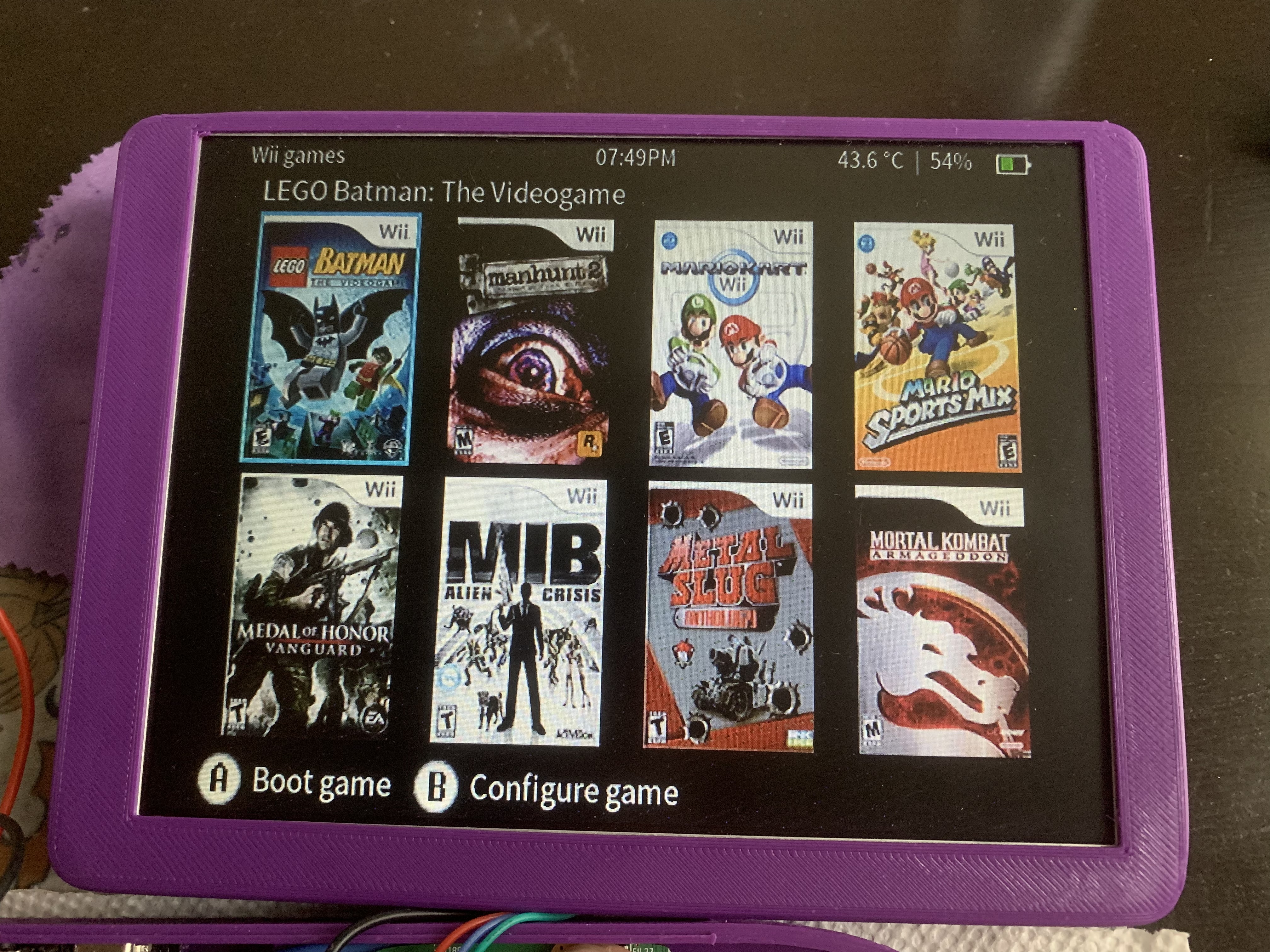

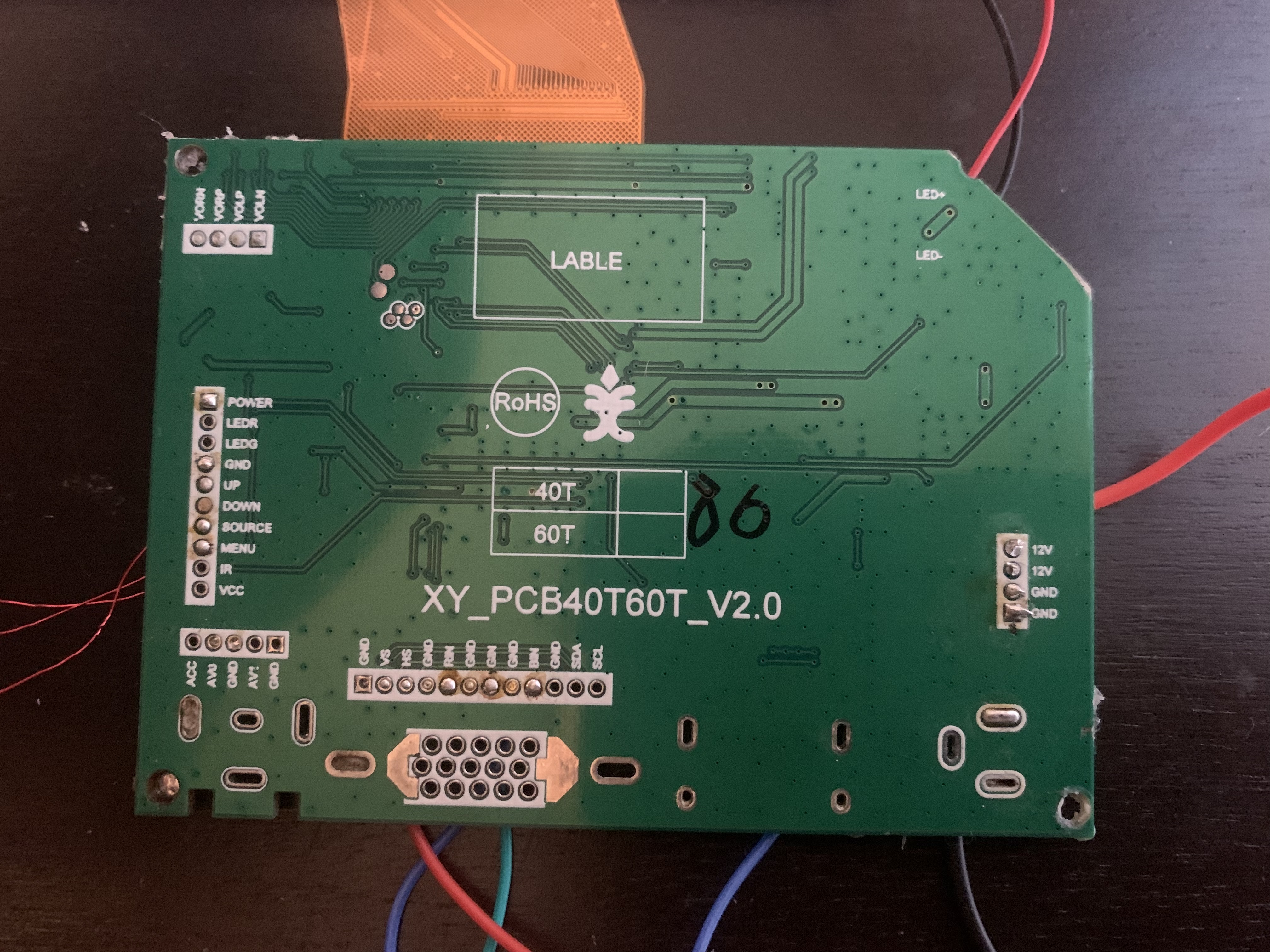

View attachment 21235View attachment 21236

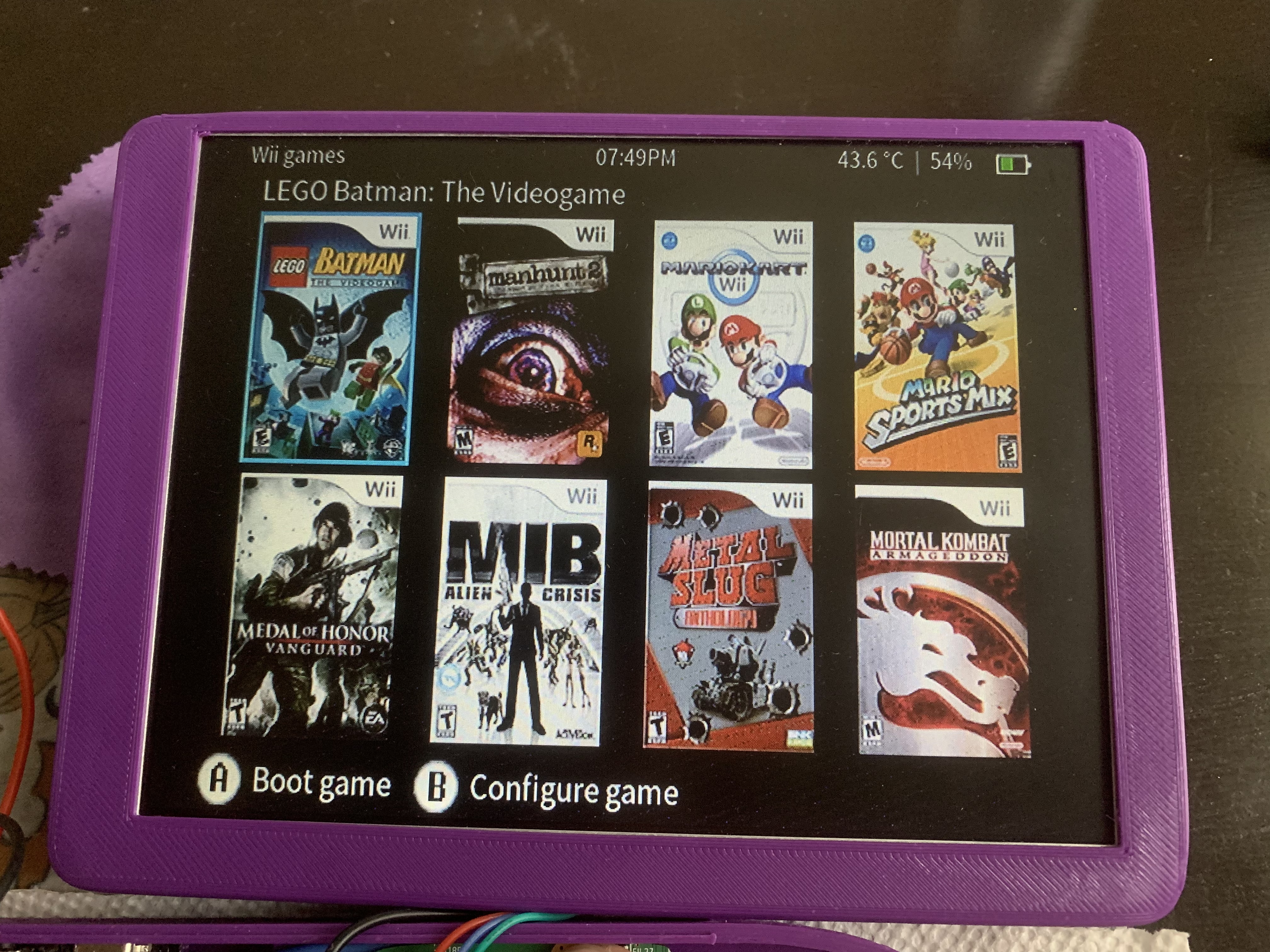

Oh damn that image quality



[Customledmods]

That's awesome, when I saw the RGB lines going to the VGA header I had been skeptical as I was under the impression that RGB component wouldn't work through there but this is sick man. Definitely have to test this on my lcds

Oh yea It works for this lcd I don’t know about other ones. super easy to test projects



[vipe_202]

Oh yea It works for this lcd I don’t know about other ones. super easy to test projects

Do you happen to have a PS2 that you could test component vid on? That would be sick to see



[Customledmods]

Do you happen to have a PS2 that you could test component vid on? That would be sick to see

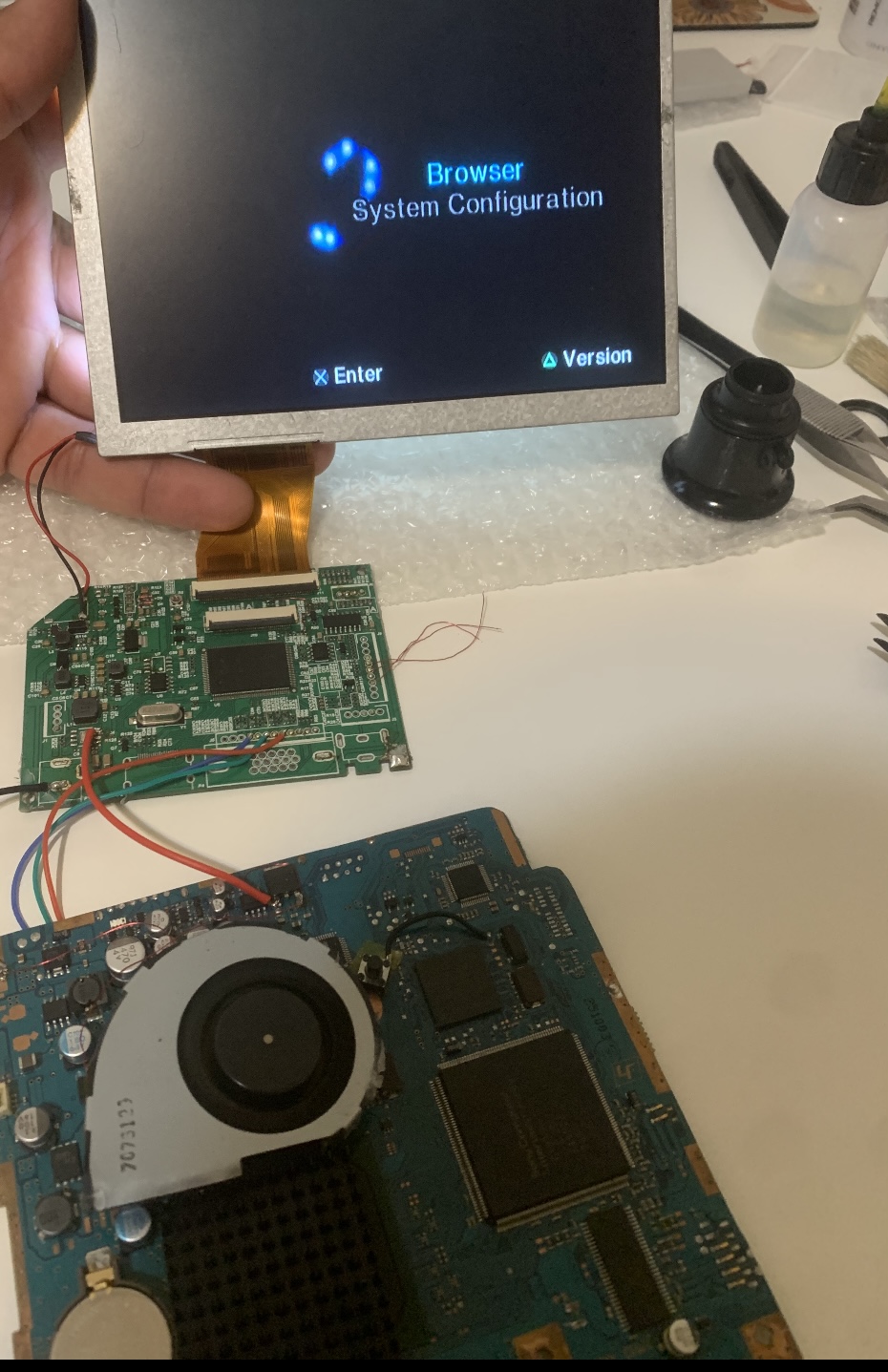

This is the same lcd before I made the enclosure it works for ps2 as well.
