G-Boy PCB Files?

[subierekt]

Hi guys,

I've adapted Dustin's shell for use with the screen lens that I used in the model I made for @supertazon . I've also included a fix for the shoulder area issues that have been reported. This was all done in TinkerCad so I'm sorry if there's any errors, although I haven't found any myself.

I have also created a new version of the G-Boy shell that I have designed with DMG stylings based on Dustin's remix - this includes a power switch, volume wheel, and navigation switch for the screen, as well as labels including "P H O N E S". I've nicknamed it the DMGBoy and it's the base file for my upcoming G-Boy project with a few extra bells and whistles!

View attachment 27170 View attachment 27169

The screen lens really adds to the overall aesthetic - I hope the iterations I've made give people more options for how they go about their project! I've included a new retainer bracket for the 480p IPS that requires hot gluing the driver board to the screen: it makes the screen area low-profile for extra clearance.

A big thank you to @Dustin Fisher for the work you've done making the G-Boy more accessible!! And to everyone else who's made the G-Boy possible.

been going through a build of this remix, just posting this here for US based builders, these switches appear to be the ones needed, they appear to be identical to the ones in the bom.

Volume wheel
Amazon product ASIN B07SG5SR7Q
Power toggle
Amazon product ASIN B01MS9PS6R
Screen wheel
Amazon product ASIN B0147XLUVS
Any chance you could upload that other front model you made with the BT pairing button?



[Rogery]

So I’m confused, guys. Are the pcb files here made to make the g-boy by yourself or is it for some kind of complement for it. Some are saying that you have to buy the whole thing anyways.



[subierekt]

So I’m confused, guys. Are the pcb files here made to make the g-boy by yourself or is it for some kind of support. Some are saying that you have to buy the whole thing anyways.

The files linked above are so you can diy your own gboy using the same boards that 4layer sells on their site for the ashida (pms, pms pd, gc+, rvl-amp). There are more parts that you have to source yourself, so it’s not really a one and done kit like the gboy used to be.



[Rogery]

Another question, sorry if I’m annoying. I don’t know anything about electrical engineering and I’m very new at this. How do I identify the components of the PCBs (such as the tiny black chips) and how and where do I buy them to solder them later? Or does it come with the PCB design and the manufacturer gets it soldered?



[subierekt]

for the 4layer boards theyre all completed already, you just need to solder the 4layer boards to the gboy boards.

Products

4Layer Technologies

4layertech.com

few other things you need, a screen, some tact switches, the 3d printed shell, and of course all the normal stuff like a wii, wire, etc. someone has a decent list above.



[Rogery]

So I do need to buy them. Well, that’s all I was wondering. Thank you so much.

I thought the files were enough PCBs for making it. I really can’t afford the RVL-PMS right now. Thanks again, mate.



[subierekt]

yeah definitely in the $300-400 range for everything, assuming you already have the tools.



[cy]

Yesterday I found myself skimming through this thread in search of a mounting bracket for the newer 640*480 IPS screen. I did a few CTRL + F searches since I didn't want to spend 30+ minutes reading and wasn't able to find much if anything related to this. So I designed one myself, it is based entirely off the old mounting bracket but fits the new board and accommodates the larger ribbon cable. Along the way, I found myself making a diagram of the VGA pinout for the front of the board after it gets mounted by the bracket. I know the back of the board shows the pinout, but you can't look at the back after it gets mounted and the pinout isn't 100% accurate, so I'm releasing both for your convenience. Enjoy!

(black represents ground in case that wasn't obvious)



[Hoppymeal]

quick question, a while back when they put the upgraded g-boy case on the forums, is that a remake that fits all the new parts?



[Stitches]

The Rev3 files are outdated and don't fit the new 4layertech boards. The case files that Dustin posted in this thread are the most up to date



[randomguy]

Is the pms 3 work for do the g-boy rev4u(about the scale)?



[Stitches]

Is the pms 3 work for do the g-boy rev4u(about the scale)?

The PD-3 is a drop-in replacement for the PD-2, yes



[randomguy]

Ok, I will buy one.Thanks!



[tankie3k]

Anybody know what the right screws are, I've read through and apparently it's a toss up.



[randomguy]

You need to use M2 screws.

Like this.
Amazon product ASIN B07CTCYS8P



[tankie3k]

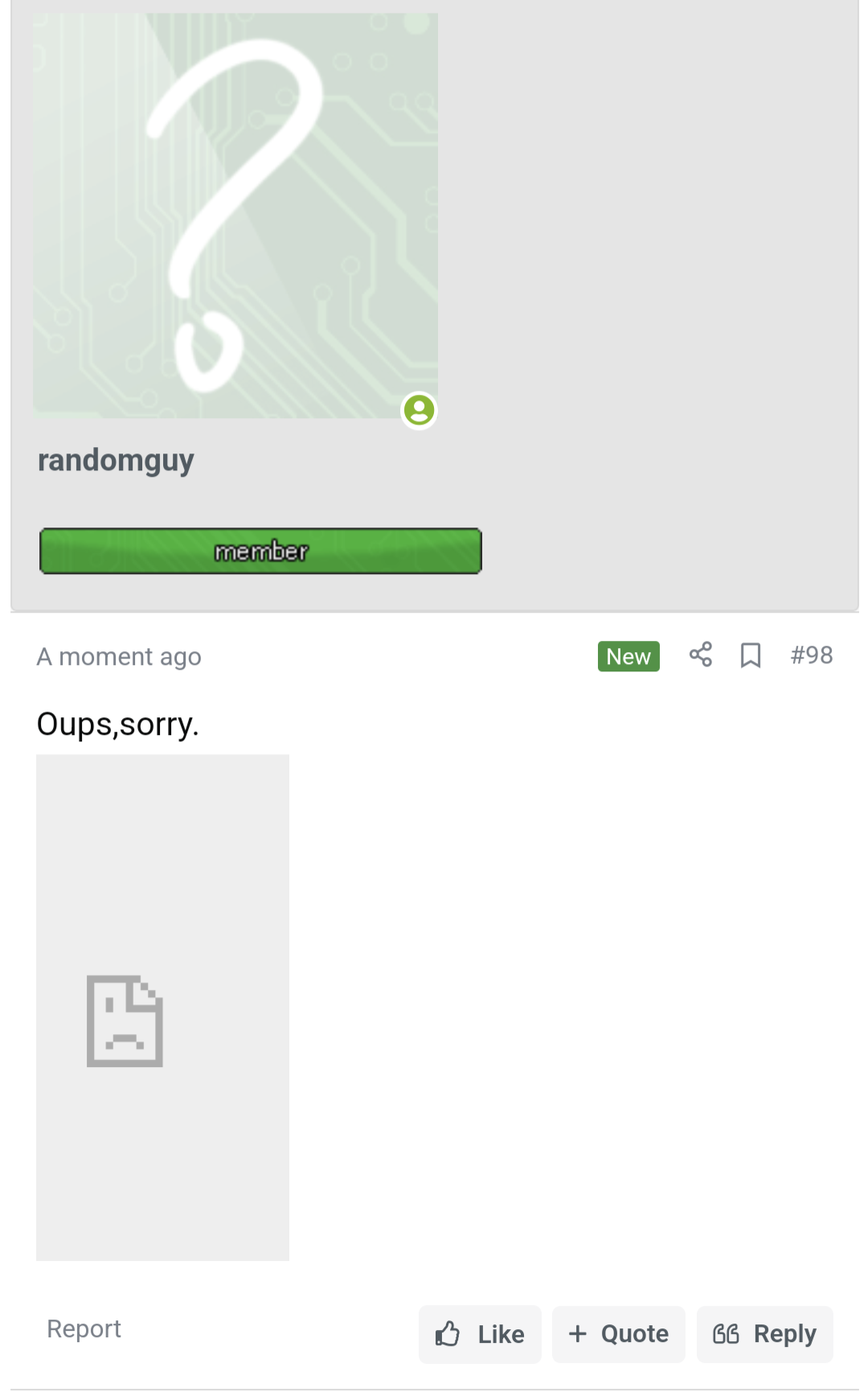

The link is broken try pasting the URL



[randomguy]

Oups,sorry.
Amazon product ASIN B07CTCYS8P



[tankie3k]

It might be an issue with the forum or my side but what's the name



[randomguy]

Ok,in Fench,it's this I hope it will help you:
800pcs/set M2 Vis Autotaraudeuses en Acier au Carbone Vis en Tête Plate Fraisées Vis Autotaraudeuses Vs à Bois avec Boîte



[tankie3k]

Thanks, you saved me a lot of searching
