For Sale - Black Resin N64 HHV2

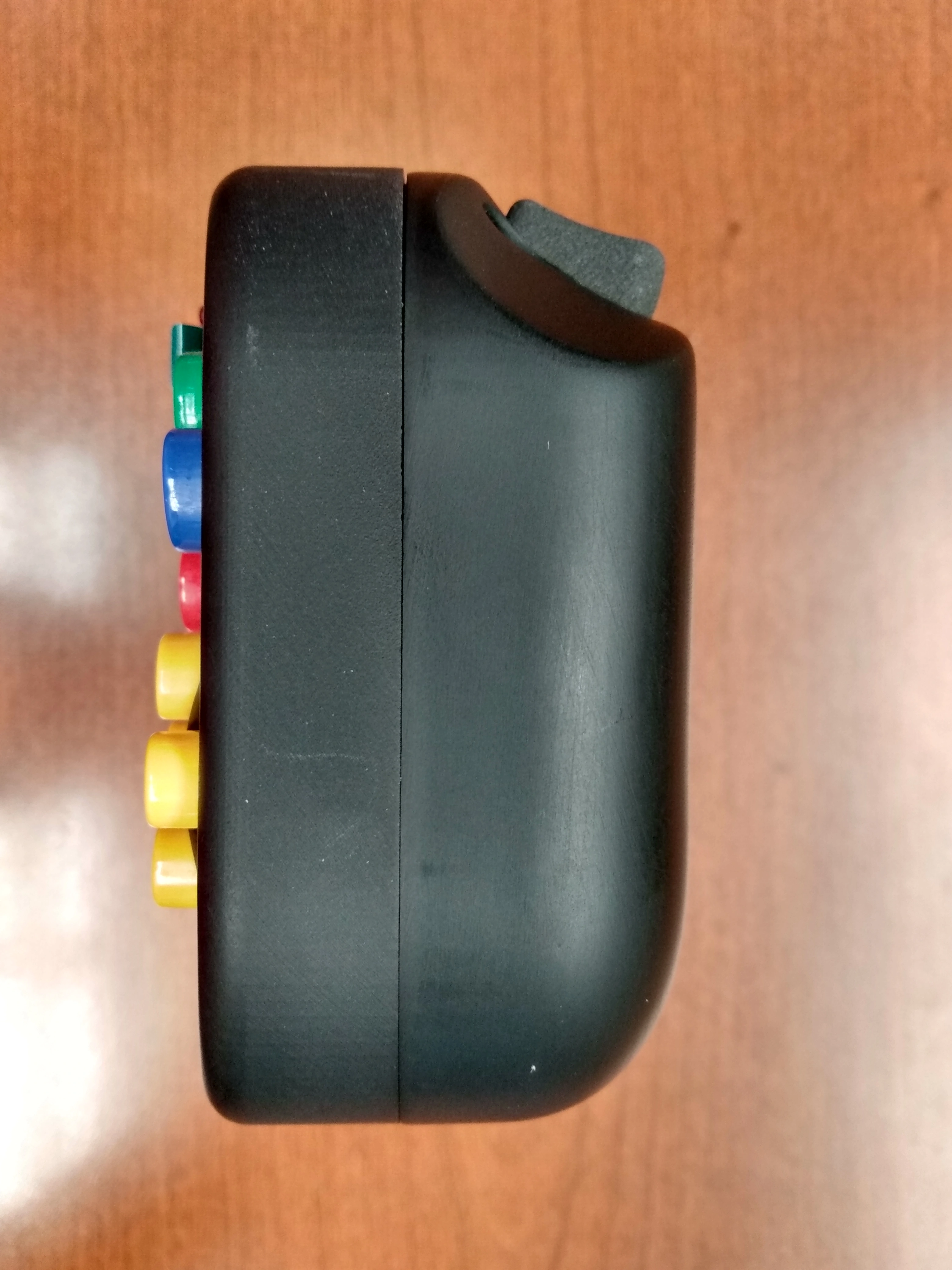

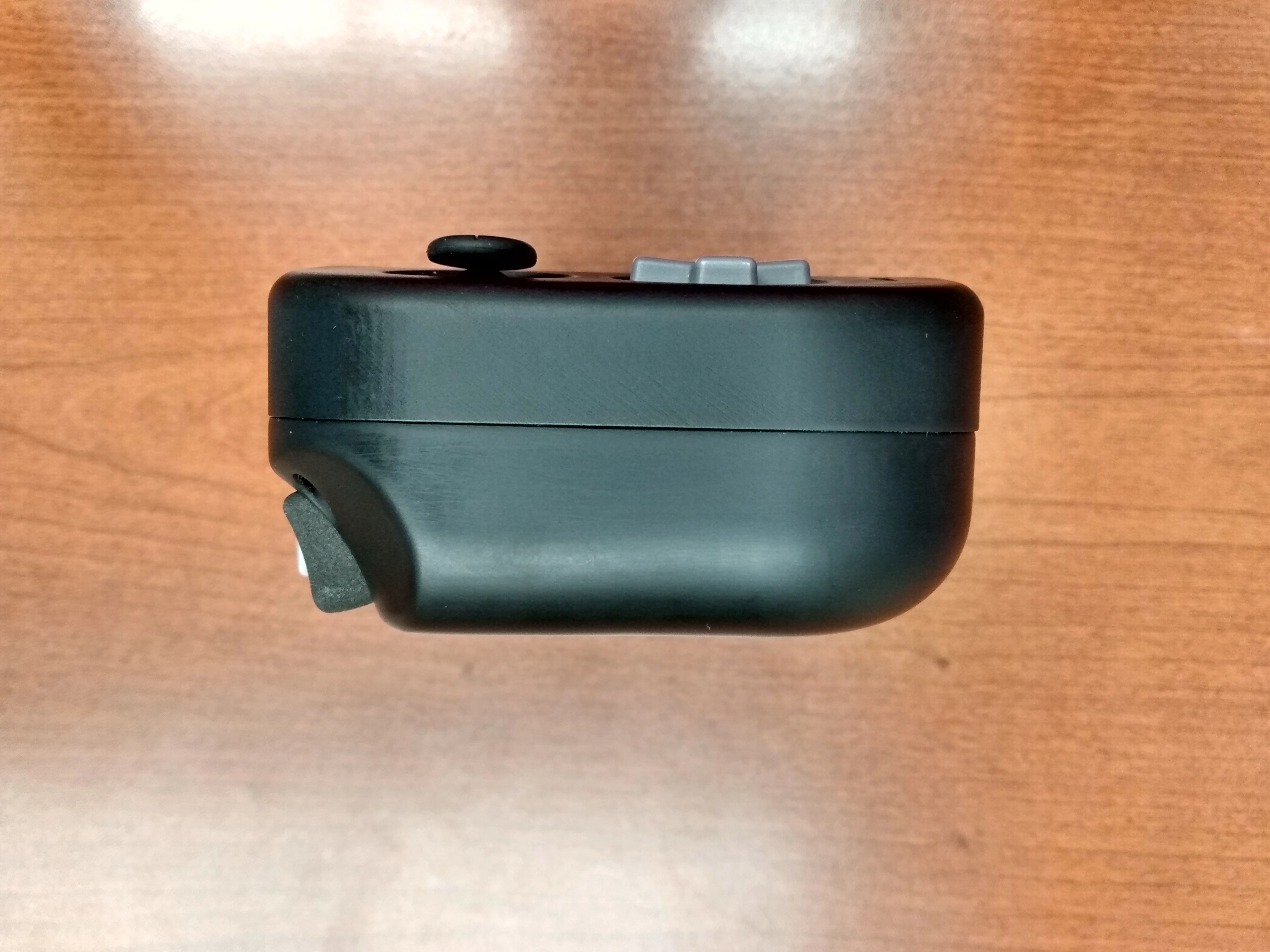

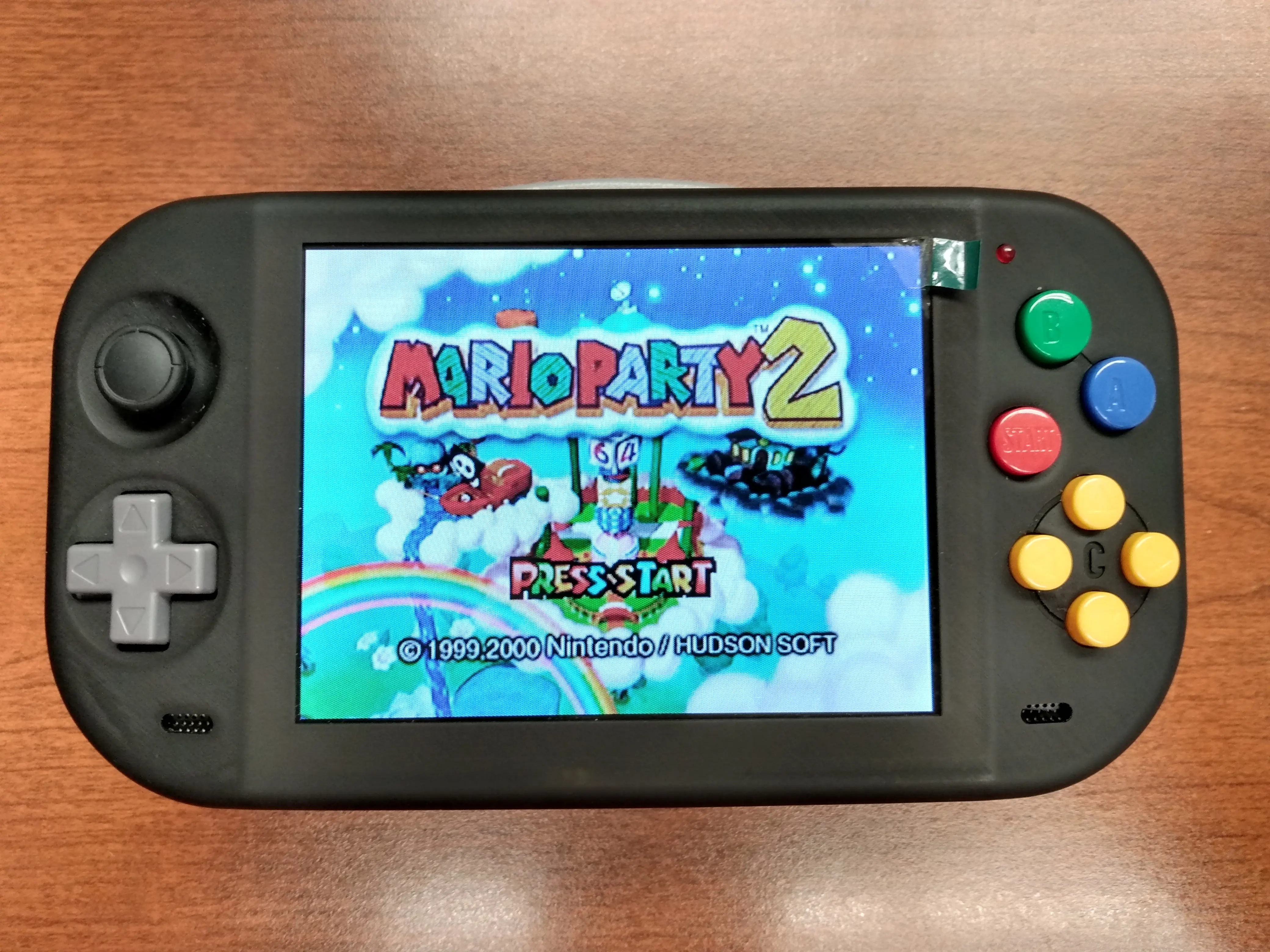

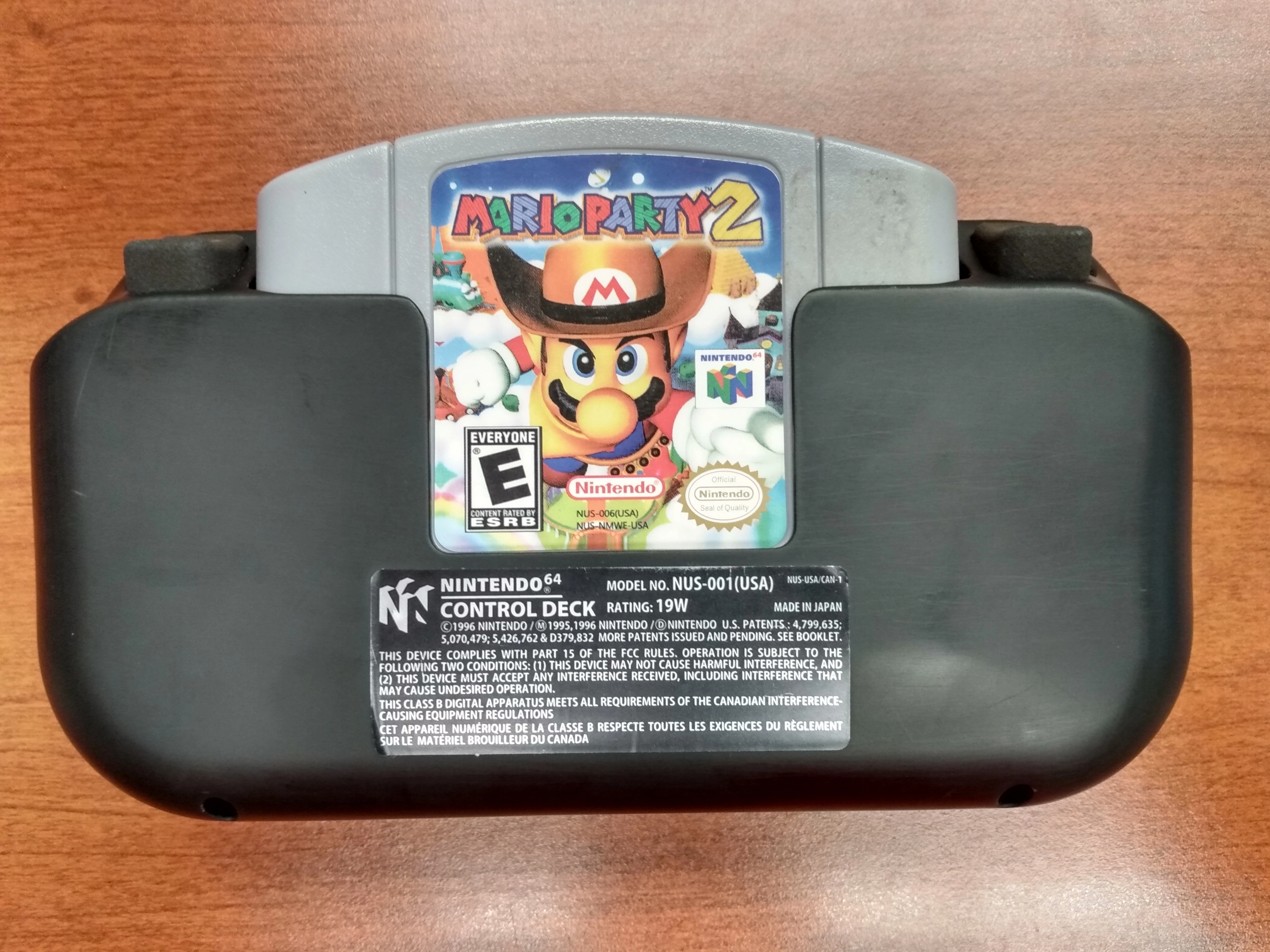

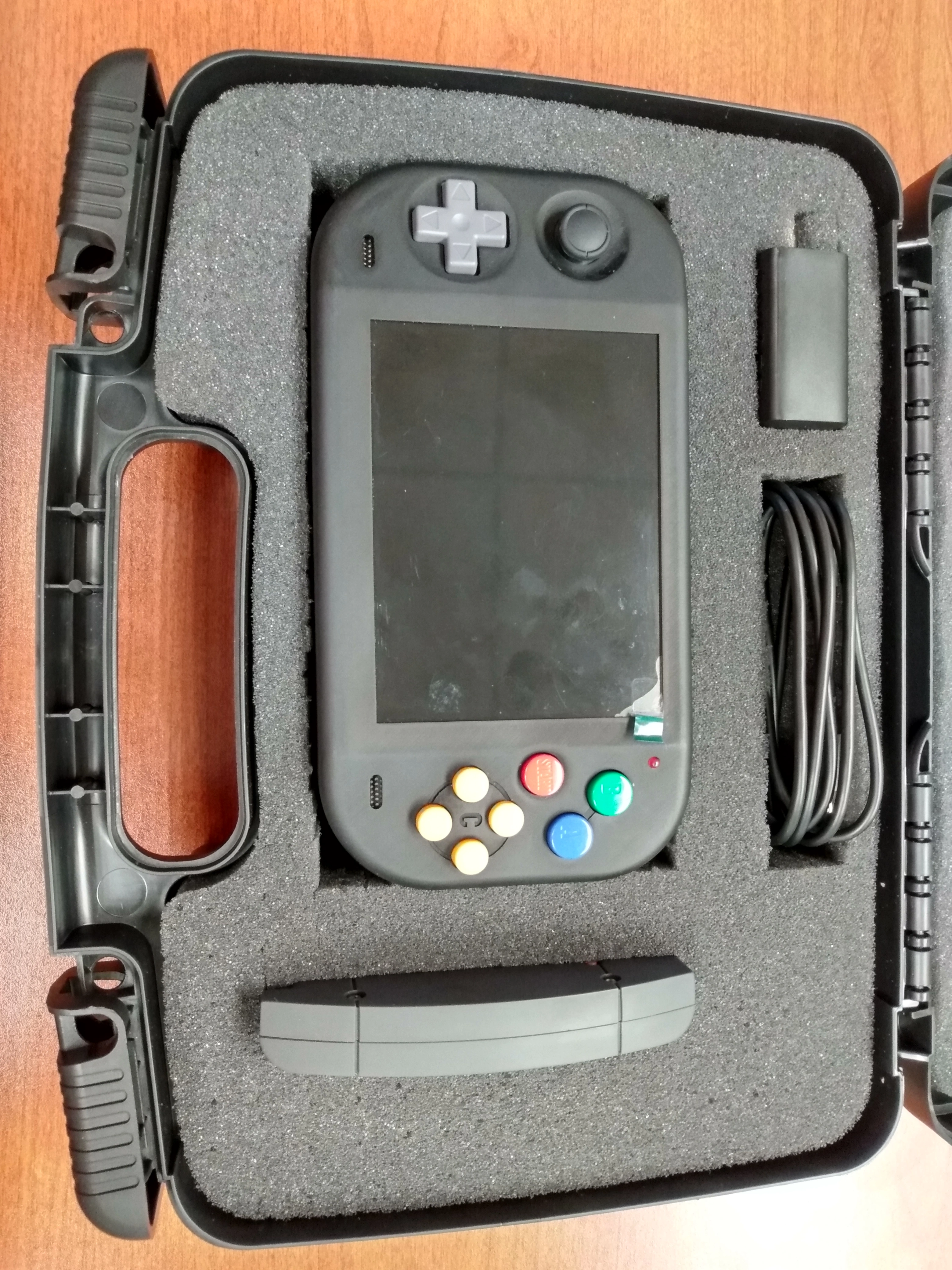

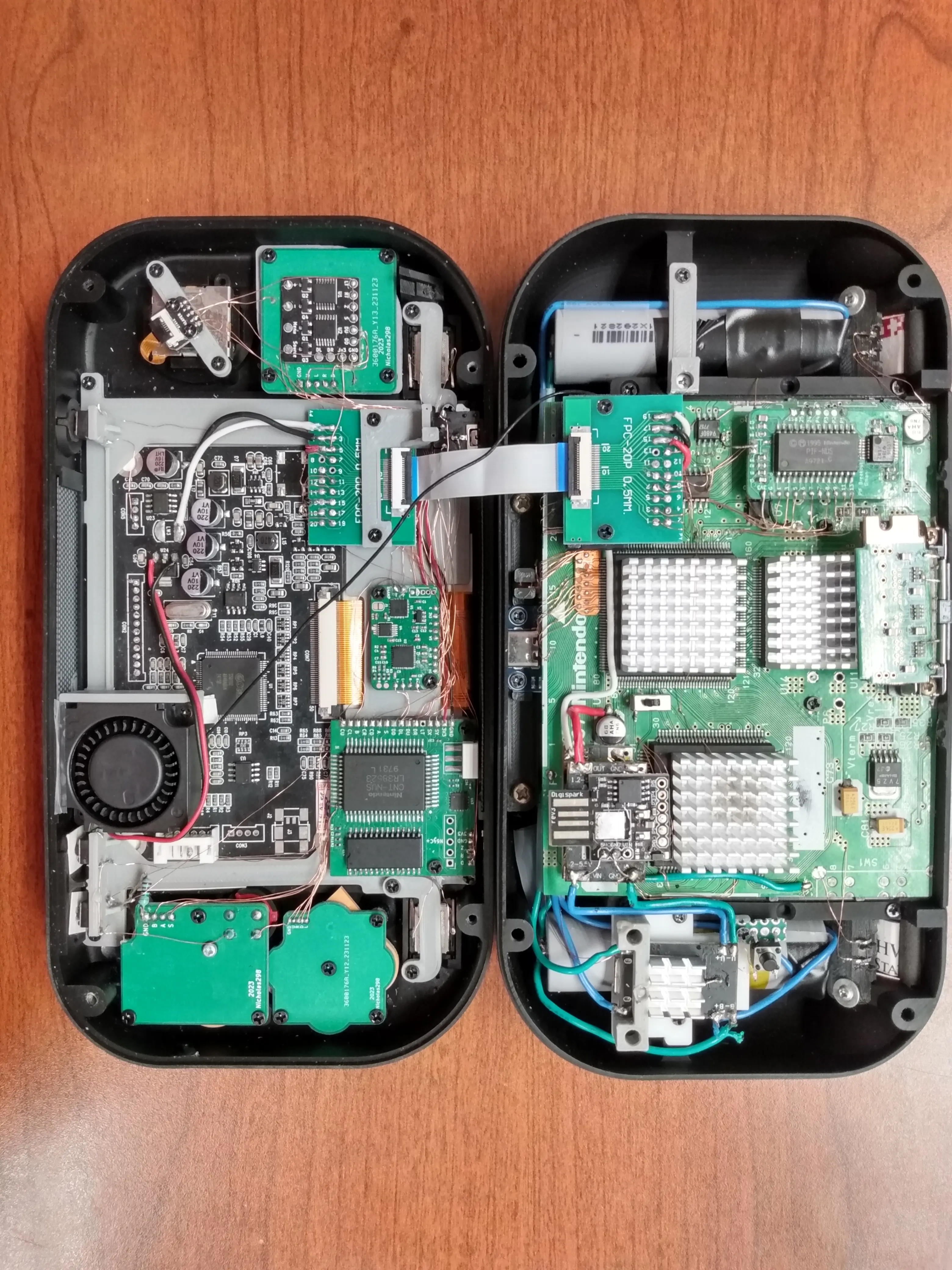

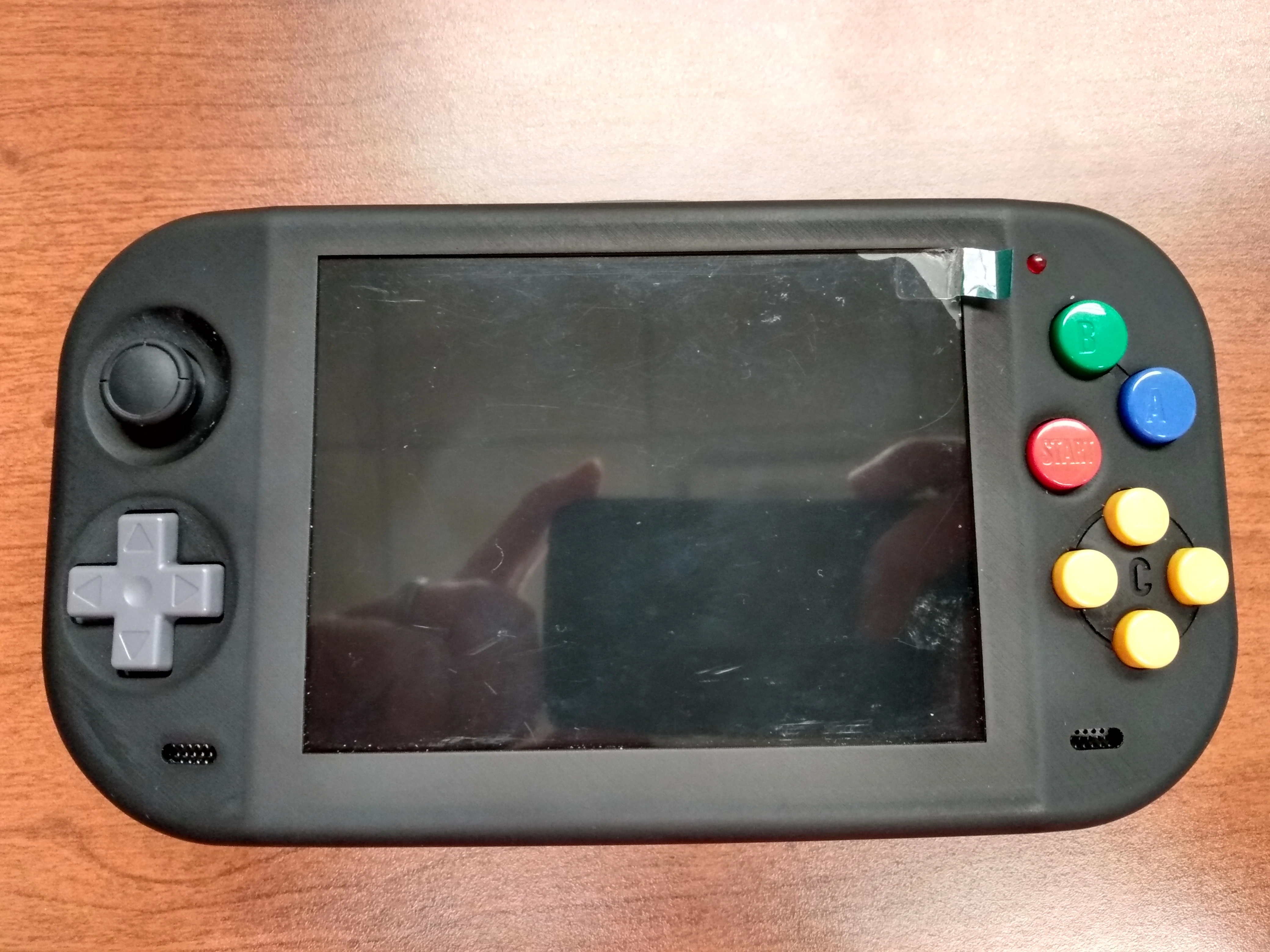

Here is my first N64 portable build, I have added a lot of features to make it better! It only has 4mb of RAM so it CANNOT play expansion pak games. The exterior case is JLC's black resin and the triggers and buttons were printed in black nylon. It will come with the case and the charger too. Some of the features that are different than the stock N64 HHv2 build:
Here is my first N64 portable build, I have added a lot of features to make it better! It only has 4mb of RAM so it CANNOT play expansion pak games. The exterior case is JLC's black resin and the triggers and buttons were printed in black nylon. It will come with the case and the charger too. Some of the features that are different than the stock N64 HHv2 build:
- It is undervolted to 3 volts to help with heat and battery life
- I added a fan to help with cooling

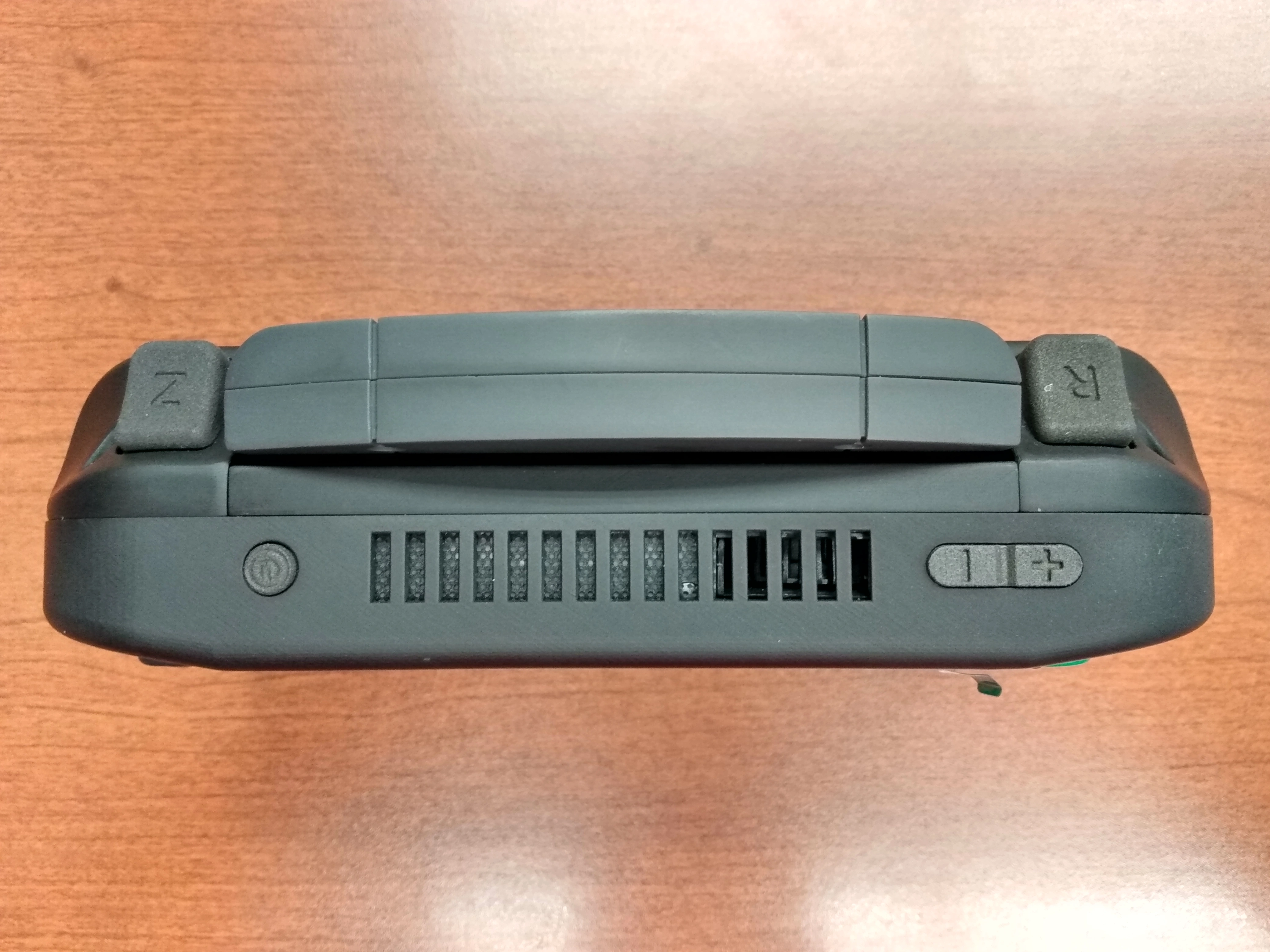

- I added physical buttons to the top for volume control

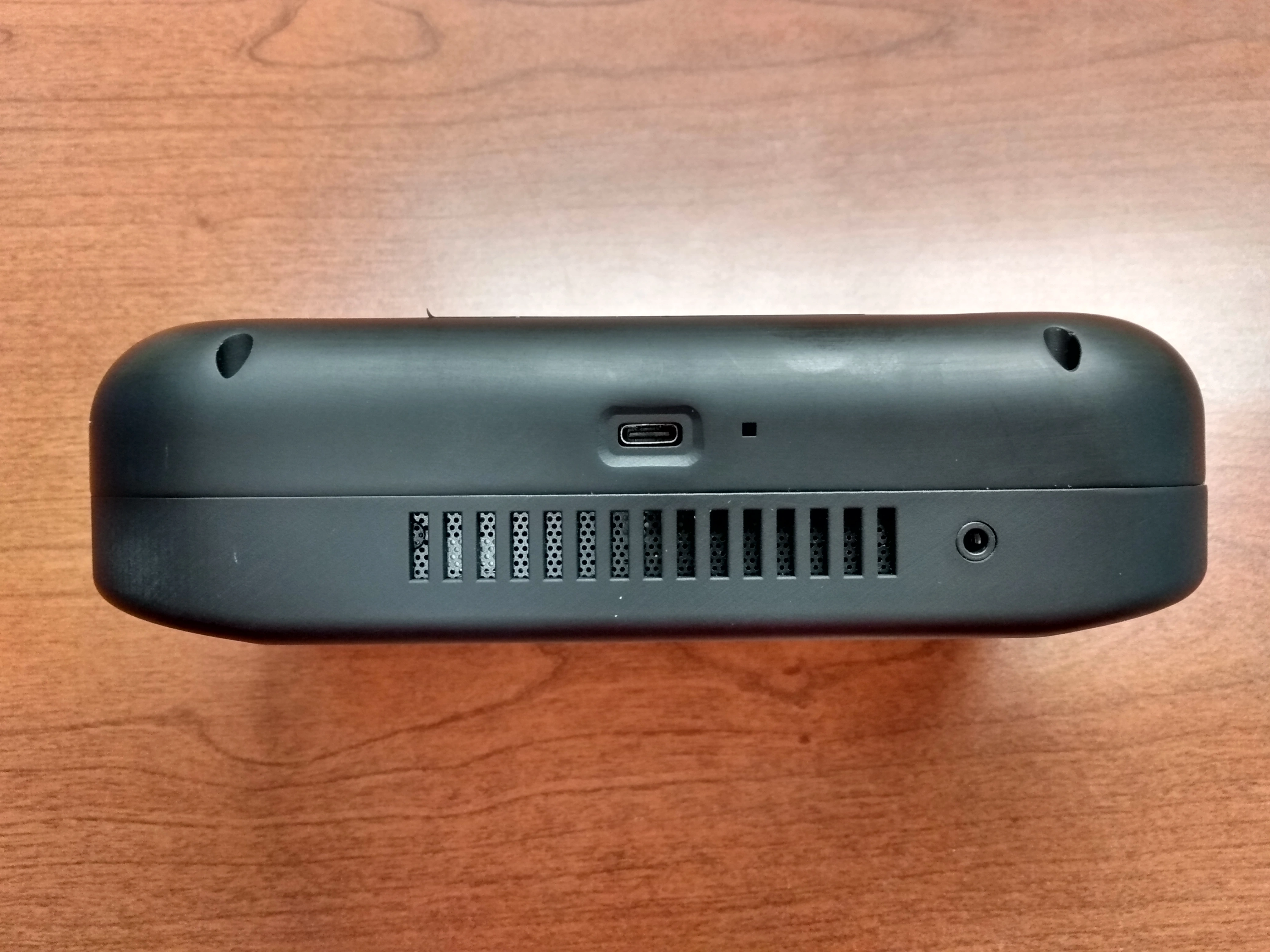

- I added a headphone jack that switches off the speakers when plugged in

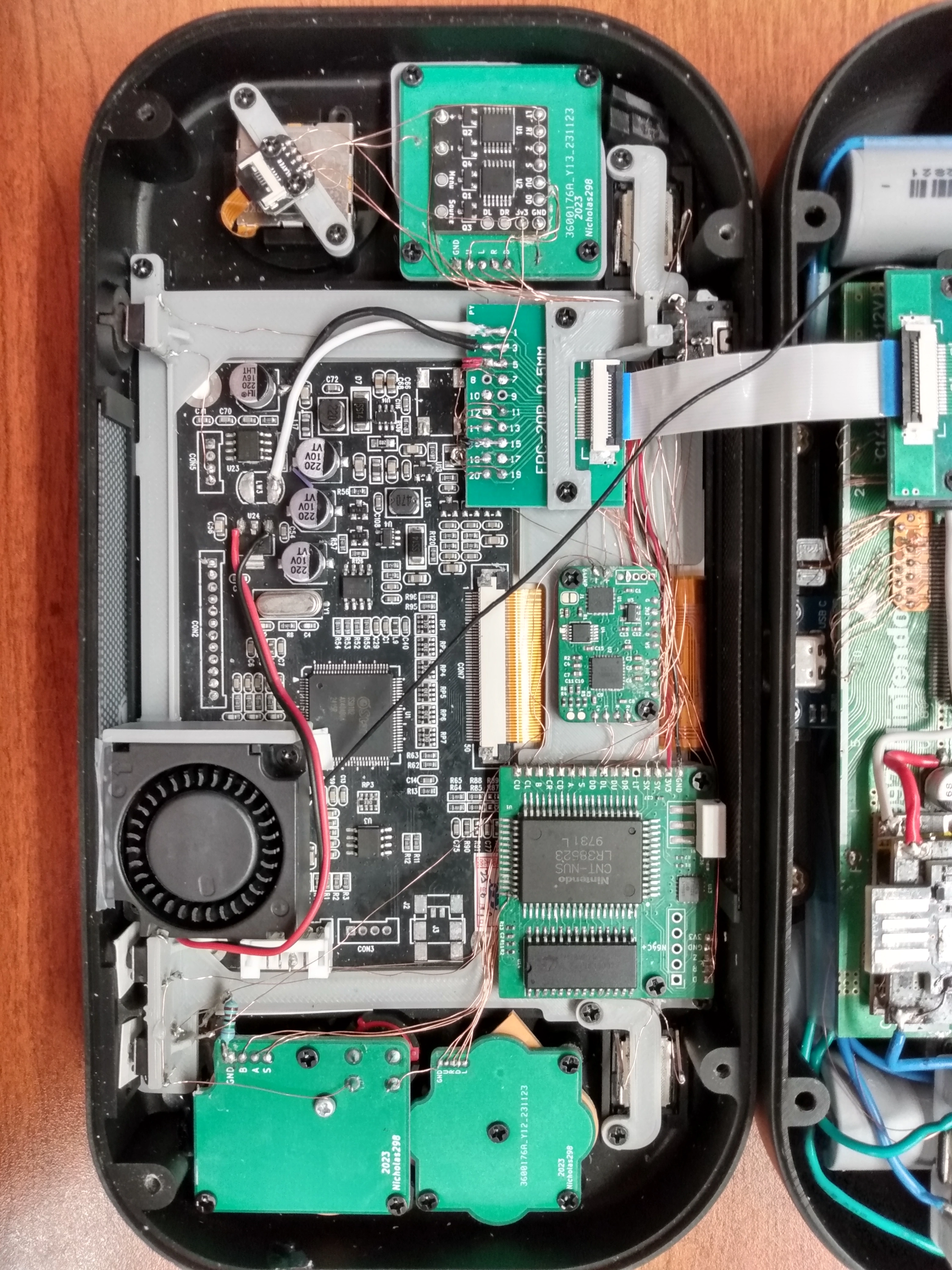

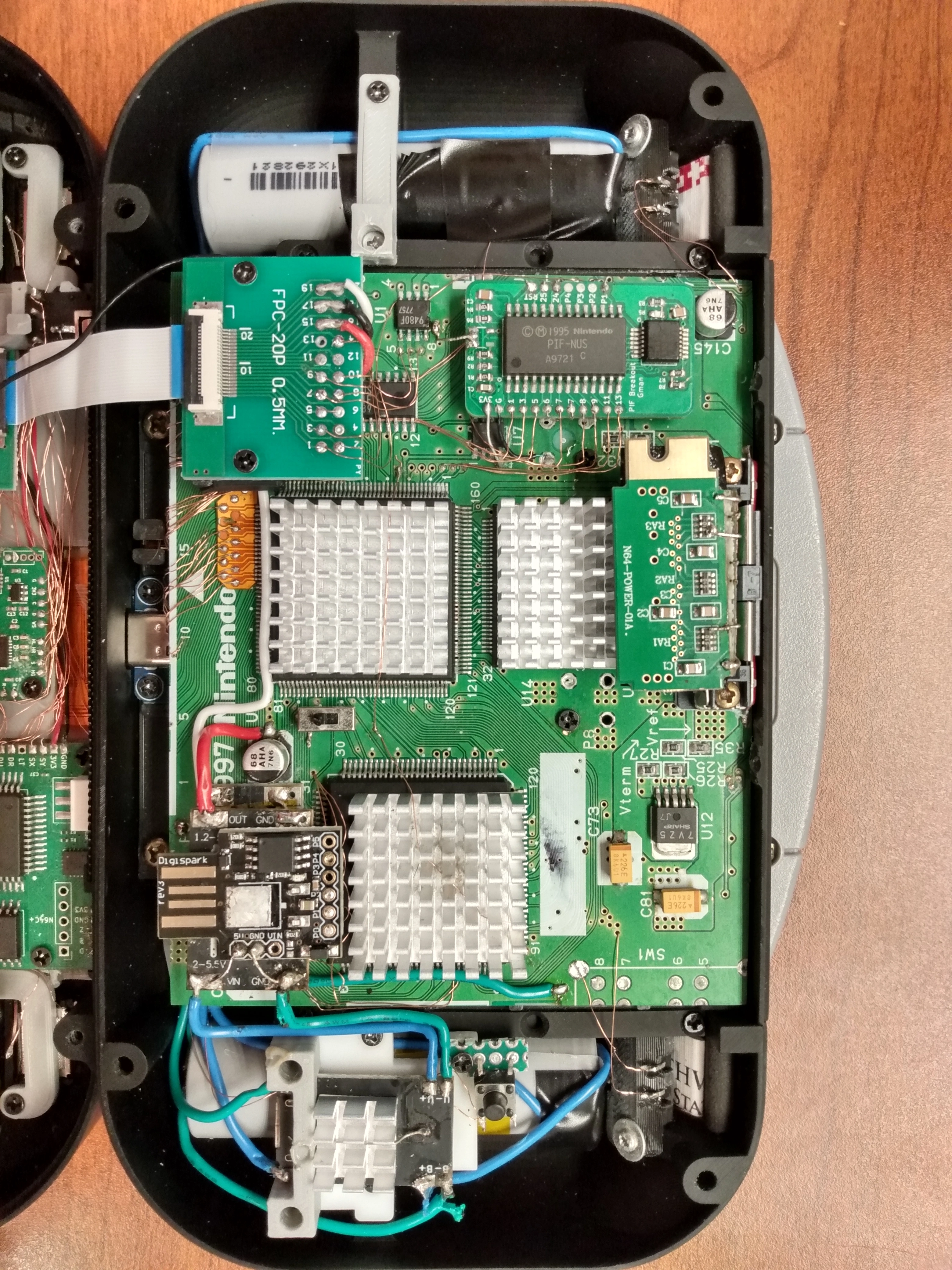

- The pms is my own creation it consists of:
- an Attiny85 digispark to control:
- Power On/Off
- Low Battery indication
- Low battery cutoff
- a BQ 25606 lithium-ion battery charging board module
- a tps63070 regulator module and tps63020 regulator module for 5v and 3v
- an Attiny85 digispark to control:
- Folded jumper pak
- The switch stick is a hall-effect one
